Types and Representation

Enumeration Representation Clauses

We have talked about the internal code of an enumeration in another section. We may change this internal code by using a representation clause, which has the following format:

for Primary_Color is (Red   =>    1,
                      Green =>    5,
                      Blue  => 1000);

The value of each code in a representation clause must be distinct. However, as you can see above, we don't need to use sequential values — the values must, however, increase for each enumeration.

We can rewrite the previous example using a representation clause:





package Days is

   type Day is (Mon, Tue, Wed,
                Thu, Fri,
                Sat, Sun);

   for Day use (Mon => 2#00000001#,
                Tue => 2#00000010#,
                Wed => 2#00000100#,
                Thu => 2#00001000#,
                Fri => 2#00010000#,
                Sat => 2#00100000#,
                Sun => 2#01000000#);

end Days;



with Ada.Text_IO; use Ada.Text_IO;
with Days;        use Days;

procedure Show_Days is
begin
   for D in Day loop
      Put_Line (Day'Image (D)
                & " position      = "
                & Integer'Image (Day'Pos (D)));
      Put_Line (Day'Image (D)
                & " internal code = "
                & Integer'Image
                    (Day'Enum_Rep (D)));
   end loop;
end Show_Days;

Now, the value of the internal code is the one that we've specified in the representation clause instead of being equivalent to the value of the enumeration position.

In the example above, we're using binary values for each enumeration — basically viewing the integer value as a bit-field and assigning one bit for each enumeration. As long as we maintain an increasing order, we can use totally arbitrary values as well. For example:





package Days is

   type Day is (Mon, Tue, Wed,
                Thu, Fri,
                Sat, Sun);

   for Day use (Mon =>  5,
                Tue =>  9,
                Wed => 42,
                Thu => 49,
                Fri => 50,
                Sat => 66,
                Sun => 99);

end Days;

Data Representation

This section provides a glimpse on attributes and aspects used for data representation. They are usually used for embedded applications because of strict requirements that are often found there. Therefore, unless you have very specific requirements for your application, in most cases, you won't need them. However, you should at least have a rudimentary understanding of them. To read a thorough overview on this topic, please refer to the Introduction to Embedded Systems Programming course.

In the Ada Reference Manual

Sizes

Ada offers multiple attributes to retrieve the size of a type or an object:

Attribute

Description

Size

Size of the representation of a subtype or an object (in bits).

Object_Size

Size of a component or an aliased object (in bits).

Component_Size

Size of a component of an array (in bits).

Storage_Size

Number of storage elements reserved for an access type or a task object.

For the first three attributes, the size is measured in bits. In the case of Storage_Size, the size is measured in storage elements. Note that the size information depends your target architecture. We'll discuss some examples to better understand the differences among those attributes.

Important

A storage element is the smallest element we can use to store data in memory. As we'll see soon, a storage element corresponds to a byte in many architectures.

The size of a storage element is represented by the System.Storage_Unit constant. In other words, the storage unit corresponds to the number of bits used for a single storage element.

In typical architectures, System.Storage_Unit is 8 bits. In this specific case, a storage element is equal to a byte in memory. Note, however, that System.Storage_Unit might have a value different than eight in certain architectures.

Size attribute and aspect

Let's start with a code example using the Size attribute:





package Custom_Types is

   type UInt_7 is range 0 .. 127;

   type UInt_7_S32 is range 0 .. 127
     with Size => 32;

end Custom_Types;



with Ada.Text_IO;  use Ada.Text_IO;

with Custom_Types; use Custom_Types;

procedure Show_Sizes is
   V1 : UInt_7;
   V2 : UInt_7_S32;
begin
   Put_Line ("UInt_7'Size:            "
             & UInt_7'Size'Image);
   Put_Line ("UInt_7'Object_Size:     "
             & UInt_7'Object_Size'Image);
   Put_Line ("V1'Size:                "
             & V1'Size'Image);
   New_Line;

   Put_Line ("UInt_7_S32'Size:        "
             & UInt_7_S32'Size'Image);
   Put_Line ("UInt_7_S32'Object_Size: "
             & UInt_7_S32'Object_Size'Image);
   Put_Line ("V2'Size:                "
             & V2'Size'Image);
end Show_Sizes;

Depending on your target architecture, you may see this output:

UInt_7'Size:             7
UInt_7'Object_Size:      8
V1'Size:                 8

UInt_7_S32'Size:         32
UInt_7_S32'Object_Size:  32
V2'Size:                 32

When we use the Size attribute for a type T, we're retrieving the minimum number of bits necessary to represent objects of that type. Note that this is not the same as the actual size of an object of type T because the compiler will select an object size that is appropriate for the target architecture.

In the example above, the size of the UInt_7 is 7 bits, while the most appropriate size to store objects of this type in the memory of our target architecture is 8 bits. To be more specific, the range of UInt_7 (0 .. 127) can be perfectly represented in 7 bits. However, most target architectures don't offer 7-bit registers or 7-bit memory storage, so 8 bits is the most appropriate size in this case.

We can retrieve the size of an object of type T by using the Object_Size. Alternatively, we can use the Size attribute directly on objects of type T to retrieve their actual size — in our example, we write V1'Size to retrieve the size of V1.

In the example above, we've used both the Size attribute (for example, UInt_7'Size) and the Size aspect (with Size => 32). While the size attribute is a function that returns the size, the size aspect is a request to the compiler to verify that the expected size can be used on the target platform. You can think of this attribute as a dialog between the developer and the compiler:

(Developer) "I think that UInt_7_S32 should be stored using at least 32 bits. Do you agree?"

(Ada compiler) "For the target platform that you selected, I can confirm that this is indeed the case."

Depending on the target platform, however, the conversation might play out like this:

(Developer) "I think that UInt_7_S32 should be stored using at least 32 bits. Do you agree?"

(Ada compiler) "For the target platform that you selected, I cannot possibly do it! COMPILATION ERROR!"

Component size

Let's continue our discussion on sizes with an example that makes use of the Component_Size attribute:





package Custom_Types is

   type UInt_7 is range 0 .. 127;

   type UInt_7_Array is
     array (Positive range <>) of UInt_7;

   type UInt_7_Array_Comp_32 is
     array (Positive range <>) of UInt_7
       with Component_Size => 32;

end Custom_Types;



with Ada.Text_IO;  use Ada.Text_IO;

with Custom_Types; use Custom_Types;

procedure Show_Sizes is
   Arr_1 : UInt_7_Array (1 .. 20);
   Arr_2 : UInt_7_Array_Comp_32 (1 .. 20);
begin
   Put_Line
     ("UInt_7_Array'Size:                   "
      & UInt_7_Array'Size'Image);
   Put_Line
     ("UInt_7_Array'Object_Size:            "
      & UInt_7_Array'Object_Size'Image);
   Put_Line
     ("UInt_7_Array'Component_Size:         "
      & UInt_7_Array'Component_Size'Image);
   Put_Line
     ("Arr_1'Component_Size:                "
      & Arr_1'Component_Size'Image);
   Put_Line
     ("Arr_1'Size:                          "
      & Arr_1'Size'Image);
   New_Line;

   Put_Line
     ("UInt_7_Array_Comp_32'Object_Size:    "
      & UInt_7_Array_Comp_32'Size'Image);
   Put_Line
     ("UInt_7_Array_Comp_32'Object_Size:    "
      & UInt_7_Array_Comp_32'Object_Size'Image);
   Put_Line
     ("UInt_7_Array_Comp_32'Component_Size: "
      &
      UInt_7_Array_Comp_32'Component_Size'Image);
   Put_Line
     ("Arr_2'Component_Size:                "
      & Arr_2'Component_Size'Image);
   Put_Line
     ("Arr_2'Size:                          "
      & Arr_2'Size'Image);
   New_Line;
end Show_Sizes;

Depending on your target architecture, you may see this output:

UInt_7_Array'Size:                    17179869176
UInt_7_Array'Object_Size:             17179869176
UInt_7_Array'Component_Size:          8
Arr_1'Component_Size:                 8
Arr_1'Size:                           160

UInt_7_Array_Comp_32'Size:            68719476704
UInt_7_Array_Comp_32'Object_Size:     68719476704
UInt_7_Array_Comp_32'Component_Size:  32
Arr_2'Component_Size:                 32
Arr_2'Size:                           640

Here, the value we get for Component_Size of the UInt_7_Array type is 8 bits, which matches the UInt_7'Object_Size — as we've seen in the previous subsection. In general, we expect the component size to match the object size of the underlying type.

However, we might have component sizes that aren't equal to the object size of the component's type. For example, in the declaration of the UInt_7_Array_Comp_32 type, we're using the Component_Size aspect to query whether the size of each component can be 32 bits:

type UInt_7_Array_Comp_32 is
  array (Positive range <>) of UInt_7
    with Component_Size => 32;

If the code compiles, we see this value when we use the Component_Size attribute. In this case, even though UInt_7'Object_Size is 8 bits, the component size of the array type (UInt_7_Array_Comp_32'Component_Size) is 32 bits.

Note that we can use the Component_Size attribute with data types, as well as with actual objects of that data type. Therefore, we can write UInt_7_Array'Component_Size and Arr_1'Component_Size, for example.

This big number (17179869176 bits) for UInt_7_Array'Size and UInt_7_Array'Object_Size might be surprising for you. This is due to the fact that Ada is reporting the size of the UInt_7_Array type for the case when the complete range is used. Considering that we specified a positive range in the declaration of the UInt_7_Array type, the maximum length on this machine is 231 - 1. The object size of an array type is calculated by multiplying the maximum length by the component size. Therefore, the object size of the UInt_7_Array type corresponds to the multiplication of 231 - 1 components (maximum length) by 8 bits (component size).

Storage size

To complete our discussion on sizes, let's look at this example of storage sizes:





package Custom_Types is

   type UInt_7 is range 0 .. 127;

   type UInt_7_Access is access UInt_7;

end Custom_Types;



with Ada.Text_IO;  use Ada.Text_IO;
with System;

with Custom_Types; use Custom_Types;

procedure Show_Sizes is
   AV1, AV2 : UInt_7_Access;
begin
   Put_Line
     ("UInt_7_Access'Storage_Size:          "
      & UInt_7_Access'Storage_Size'Image);
   Put_Line
     ("UInt_7_Access'Storage_Size (bits):   "
      & Integer'Image (UInt_7_Access'Storage_Size
                       * System.Storage_Unit));

   Put_Line
     ("UInt_7'Size:               "
      & UInt_7'Size'Image);
   Put_Line
     ("UInt_7_Access'Size:        "
      & UInt_7_Access'Size'Image);
   Put_Line
     ("UInt_7_Access'Object_Size: "
      & UInt_7_Access'Object_Size'Image);
   Put_Line
     ("AV1'Size:                  "
      & AV1'Size'Image);
   New_Line;

   Put_Line ("Allocating AV1...");
   AV1 := new UInt_7;
   Put_Line ("Allocating AV2...");
   AV2 := new UInt_7;
   New_Line;

   Put_Line
     ("AV1.all'Size:              "
      & AV1.all'Size'Image);
   New_Line;
end Show_Sizes;

Depending on your target architecture, you may see this output:

UInt_7_Access'Storage_Size:           0
UInt_7_Access'Storage_Size (bits):    0

UInt_7'Size:                7
UInt_7_Access'Size:         64
UInt_7_Access'Object_Size:  64
AV1'Size:                   64

Allocating AV1...
Allocating AV2...

AV1.all'Size:               8

As we've mentioned earlier on, Storage_Size corresponds to the number of storage elements reserved for an access type or a task object. In this case, we see that the storage size of the UInt_7_Access type is zero. This is because we haven't indicated that memory should be reserved for this data type. Thus, the compiler doesn't reserve memory and simply sets the size to zero.

Because Storage_Size gives us the number of storage elements, we have to multiply this value by System.Storage_Unit to get the total storage size in bits. (In this particular example, however, the multiplication doesn't make any difference, as the number of storage elements is zero.)

Note that the size of our original data type UInt_7 is 7 bits, while the size of its corresponding access type UInt_7_Access (and the access object AV1) is 64 bits. This is due to the fact that the access type doesn't contain an object, but rather memory information about an object. You can retrieve the size of an object allocated via new by first dereferencing it — in our example, we do this by writing AV1.all'Size.

Now, let's use the Storage_Size aspect to actually reserve memory for this data type:





package Custom_Types is

   type UInt_7 is range 0 .. 127;

   type UInt_7_Reserved_Access is access UInt_7
     with Storage_Size => 8;

end Custom_Types;



with Ada.Text_IO;  use Ada.Text_IO;
with System;

with Custom_Types; use Custom_Types;

procedure Show_Sizes is
   RAV1, RAV2 : UInt_7_Reserved_Access;
begin
   Put_Line
   ("UInt_7_Reserved_Access'Storage_Size:        "
    & UInt_7_Reserved_Access'Storage_Size'Image);

   Put_Line
   ("UInt_7_Reserved_Access'Storage_Size (bits): "
    & Integer'Image
        (UInt_7_Reserved_Access'Storage_Size
         * System.Storage_Unit));

   Put_Line
     ("UInt_7_Reserved_Access'Size:        "
      & UInt_7_Reserved_Access'Size'Image);
   Put_Line
     ("UInt_7_Reserved_Access'Object_Size: "
      & UInt_7_Reserved_Access'Object_Size'Image);
   Put_Line
     ("RAV1'Size:                          "
      & RAV1'Size'Image);
   New_Line;

   Put_Line ("Allocating RAV1...");
   RAV1 := new UInt_7;
   Put_Line ("Allocating RAV2...");
   RAV2 := new UInt_7;
   New_Line;
end Show_Sizes;

Depending on your target architecture, you may see this output:

UInt_7_Reserved_Access'Storage_Size:         8
UInt_7_Reserved_Access'Storage_Size (bits):  64

UInt_7_Reserved_Access'Size:         64
UInt_7_Reserved_Access'Object_Size:  64
RAV1'Size:                           64

Allocating RAV1...
Allocating RAV2...

raised STORAGE_ERROR : s-poosiz.adb:108 explicit raise

In this case, we're reserving 8 storage elements in the declaration of UInt_7_Reserved_Access.

type UInt_7_Reserved_Access is access UInt_7
  with Storage_Size => 8;

Since each storage element corresponds to one byte (8 bits) in this architecture, we're reserving a maximum of 64 bits (or 8 bytes) for the UInt_7_Reserved_Access type.

This example raises an exception at runtime — a storage error, to be more specific. This is because the maximum reserved size is 64 bits, and the size of a single access object is 64 bits as well. Therefore, after the first allocation, the reserved storage space is already consumed, so we cannot allocate a second access object.

This behavior might be quite limiting in many cases. However, for certain applications where memory is very constrained, this might be exactly what we want to see. For example, having an exception being raised when the allocated memory for this data type has reached its limit might allow the application to have enough memory to at least handle the exception gracefully.

Alignment

For many algorithms, it's important to ensure that we're using the appropriate alignment. This can be done by using the Alignment attribute and the Alignment aspect. Let's look at this example:





package Custom_Types is

   type UInt_7 is range 0 .. 127;

   type Aligned_UInt_7 is new UInt_7
     with Alignment => 4;

end Custom_Types;



with Ada.Text_IO;  use Ada.Text_IO;

with Custom_Types; use Custom_Types;

procedure Show_Alignment is
   V         : constant UInt_7         := 0;
   Aligned_V : constant Aligned_UInt_7 := 0;
begin
   Put_Line
     ("UInt_7'Alignment:           "
      & UInt_7'Alignment'Image);
   Put_Line
     ("UInt_7'Size:                "
      & UInt_7'Size'Image);
   Put_Line
     ("UInt_7'Object_Size:         "
      & UInt_7'Object_Size'Image);
   Put_Line
     ("V'Alignment:                "
      & V'Alignment'Image);
   Put_Line
     ("V'Size:                     "
      & V'Size'Image);
   New_Line;

   Put_Line
     ("Aligned_UInt_7'Alignment:   "
      & Aligned_UInt_7'Alignment'Image);
   Put_Line
     ("Aligned_UInt_7'Size:        "
      & Aligned_UInt_7'Size'Image);
   Put_Line
     ("Aligned_UInt_7'Object_Size: "
      & Aligned_UInt_7'Object_Size'Image);
   Put_Line
     ("Aligned_V'Alignment:        "
      & Aligned_V'Alignment'Image);
   Put_Line
     ("Aligned_V'Size:             "
      & Aligned_V'Size'Image);
   New_Line;
end Show_Alignment;

Depending on your target architecture, you may see this output:

UInt_7'Alignment:            1
UInt_7'Size:                 7
UInt_7'Object_Size:          8
V'Alignment:                 1
V'Size:                      8

Aligned_UInt_7'Alignment:    4
Aligned_UInt_7'Size:         7
Aligned_UInt_7'Object_Size:  32
Aligned_V'Alignment:         4
Aligned_V'Size:              32

In this example, we're reusing the UInt_7 type that we've already been using in previous examples. Because we haven't specified any alignment for the UInt_7 type, it has an alignment of 1 storage unit (or 8 bits). However, in the declaration of the Aligned_UInt_7 type, we're using the Alignment aspect to request an alignment of 4 storage units (or 32 bits):

type Aligned_UInt_7 is new UInt_7
  with Alignment => 4;

When using the Alignment attribute for the Aligned_UInt_7 type, we can confirm that its alignment is indeed 4 storage units (bytes).

Note that we can use the Alignment attribute for both data types and objects — in the code above, we're using UInt_7'Alignment and V'Alignment, for example.

Because of the alignment we're specifying for the Aligned_UInt_7 type, its size — indicated by the Object_Size attribute — is 32 bits instead of 8 bits as for the UInt_7 type.

Note that you can also retrieve the alignment associated with a class using S'Class'Alignment. For example:





with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Class_Alignment is

   type Point_1D is tagged record
      X : Integer;
   end record;

   type Point_2D is new Point_1D with record
      Y : Integer;
   end record
     with Alignment => 16;

   type Point_3D is new Point_2D with record
      Z : Integer;
   end record;

begin
   Put_Line ("1D_Point'Alignment:       "
             & Point_1D'Alignment'Image);
   Put_Line ("1D_Point'Class'Alignment: "
             & Point_1D'Class'Alignment'Image);
   Put_Line ("2D_Point'Alignment:       "
             & Point_2D'Alignment'Image);
   Put_Line ("2D_Point'Class'Alignment: "
             & Point_2D'Class'Alignment'Image);
   Put_Line ("3D_Point'Alignment:       "
             & Point_3D'Alignment'Image);
   Put_Line ("3D_Point'Class'Alignment: "
             & Point_3D'Class'Alignment'Image);
end Show_Class_Alignment;

Overlapping Storage

Algorithms can be designed to perform in-place or out-of-place processing. In other words, they can take advantage of the fact that input and output arrays share the same storage space or not.

We can use the Has_Same_Storage and the Overlaps_Storage attributes to retrieve more information about how the storage space of two objects related to each other:

  • the Has_Same_Storage attribute indicates whether two objects have the exact same storage.

    • A typical example is when both objects are exactly the same, so they obviously share the same storage. For example, for array A, A'Has_Same_Storage (A) is always True.

  • the Overlaps_Storage attribute indicates whether two objects have at least one bit in common.

    • Note that, if two objects have the same storage, this implies that their storage also overlaps. In other words, A'Has_Same_Storage (B) = True implies that A'Overlaps_Storage (B) = True.

Let's look at this example:





package Int_Array_Processing is

   type Int_Array is
     array (Positive range <>) of Integer;

   procedure Show_Storage (X : Int_Array;
                           Y : Int_Array);

   procedure Process (X :     Int_Array;
                      Y : out Int_Array);

end Int_Array_Processing;



with Ada.Text_IO; use Ada.Text_IO;

package body Int_Array_Processing is

   procedure Show_Storage (X : Int_Array;
                           Y : Int_Array) is
   begin
      if X'Has_Same_Storage (Y) then
         Put_Line
         ("Info: X and Y have the same storage.");
      else
         Put_Line
           ("Info: X and Y don't have"
            & "the same storage.");
      end if;
      if X'Overlaps_Storage (Y) then
         Put_Line
           ("Info: X and Y overlap.");
      else
         Put_Line
           ("Info: X and Y don't overlap.");
      end if;
   end Show_Storage;

   procedure Process (X :     Int_Array;
                      Y : out Int_Array) is
   begin
      Put_Line ("==== PROCESS ====");
      Show_Storage (X, Y);

      if X'Has_Same_Storage (Y) then
         Put_Line ("In-place processing...");
      else
         if not X'Overlaps_Storage (Y) then
            Put_Line
              ("Out-of-place processing...");
         else
            Put_Line
              ("Cannot process "
               & "overlapping arrays...");
         end if;
      end if;
      New_Line;
   end Process;

end Int_Array_Processing;



with Int_Array_Processing;
use  Int_Array_Processing;

procedure Main is
   A : Int_Array (1 .. 20) := (others => 3);
   B : Int_Array (1 .. 20) := (others => 4);
begin
   Process (A, A);
   --  In-place processing:
   --  sharing the exact same storage

   Process (A (1 .. 10), A (10 .. 20));
   --  Overlapping one component: A (10)

   Process (A (1 .. 10), A (11 .. 20));
   --  Out-of-place processing:
   --  same array, but not sharing any storage

   Process (A, B);
   --  Out-of-place processing:
   --  two different arrays
end Main;

In this code example, we implement two procedures:

  • Show_Storage, which shows storage information about two arrays by using the Has_Same_Storage and Overlaps_Storage attributes.

  • Process, which are supposed to process an input array X and store the processed data in the output array Y.

    • Note that the implementation of this procedure is actually just a mock-up, so that no processing is actually taking place.

We have four different instances of how we can call the Process procedure:

  • in the Process (A, A) call, we're using the same array for the input and output arrays. This is a perfect example of in-place processing. Because the input and the output arrays arguments are actually the same object, they obviously share the exact same storage.

  • in the Process (A (1 .. 10), A (10 .. 20)) call, we're using two slices of the A array as input and output arguments. In this case, a single component of the A array is shared: A (10). Because the storage space is overlapping, but not exactly the same, neither in-place nor out-of-place processing can usually be used in this case.

  • in the Process (A (1 .. 10), A (11 .. 20)) call, even though we're using the same array A for the input and output arguments, we're using slices that are completely independent from each other, so that the input and output arrays are not sharing any storage in this case. Therefore, we can use out-of-place processing.

  • in the Process (A, B) call, we have two different arrays — which obviously don't share any storage space —, so we can use out-of-place processing.

Packed Representation

As we've seen previously, the minimum number of bits required to represent a data type might be less than the actual number of bits used to store an object of that same type. We've seen an example where UInt_7'Size was 7 bits, while UInt_7'Object_Size was 8 bits. The most extreme case is the one for the Boolean type: in this case, Boolean'Size is 1 bit, while Boolean'Object_Size might be 8 bits (or even more on certain architectures). In such cases, we have 7 (or more) unused bits in memory for each object of Boolean type. In other words, we're wasting memory. On the other hand, we're gaining speed of access because we can directly access each element without having to first change its internal representation back and forth. We'll come back to this point later.

The situation is even worse when implementing bit-fields, which can be declared as an array of Boolean components. For example:





package Flag_Definitions is

   type Flags is
     array (Positive range <>) of Boolean;

end Flag_Definitions;



with Ada.Text_IO;      use Ada.Text_IO;
with Flag_Definitions; use Flag_Definitions;

procedure Show_Flags is
   Flags_1 : Flags (1 .. 8);
begin
   Put_Line ("Boolean'Size:           "
             & Boolean'Size'Image);
   Put_Line ("Boolean'Object_Size:    "
             & Boolean'Object_Size'Image);
   Put_Line ("Flags_1'Size:           "
             & Flags_1'Size'Image);
   Put_Line ("Flags_1'Component_Size: "
             & Flags_1'Component_Size'Image);
end Show_Flags;

Depending on your target architecture, you may see this output:

Boolean'Size:            1
Boolean'Object_Size:     8
Flags_1'Size:            64
Flags_1'Component_Size:  8

In this example, we're declaring the Flags type as an array of Boolean components. As we can see in this case, although the size of the Boolean type is just 1 bit, an object of this type has a size of 8 bits. Consequently, each component of the Flags type has a size of 8 bits. Moreover, an array with 8 components of Boolean type — such as the Flags_1 array — has a size of 64 bits.

Therefore, having a way to compact the representation — so that we can store multiple objects without wasting storage space — may help us improving memory usage. This is actually possible by using the Pack aspect. For example, we could extend the previous example and declare a Packed_Flags type that makes use of this aspect:





package Flag_Definitions is

   type Flags is
     array (Positive range <>) of Boolean;

   type Packed_Flags is
     array (Positive range <>) of Boolean
       with Pack;

end Flag_Definitions;



with Ada.Text_IO;      use Ada.Text_IO;
with Flag_Definitions; use Flag_Definitions;

procedure Show_Packed_Flags is
   Flags_1 : Flags (1 .. 8);
   Flags_2 : Packed_Flags (1 .. 8);
begin
   Put_Line ("Boolean'Size:           "
             & Boolean'Size'Image);
   Put_Line ("Boolean'Object_Size:    "
             & Boolean'Object_Size'Image);
   Put_Line ("Flags_1'Size:           "
             & Flags_1'Size'Image);
   Put_Line ("Flags_1'Component_Size: "
             & Flags_1'Component_Size'Image);
   Put_Line ("Flags_2'Size:           "
             & Flags_2'Size'Image);
   Put_Line ("Flags_2'Component_Size: "
             & Flags_2'Component_Size'Image);
end Show_Packed_Flags;

Depending on your target architecture, you may see this output:

Boolean'Size:            1
Boolean'Object_Size:     8
Flags_1'Size:            64
Flags_1'Component_Size:  8
Flags_2'Size:            8
Flags_2'Component_Size:  1

In this example, we're declaring the Flags_2 array of Packed_Flags type. Its size is 8 bits — instead of the 64 bits required for the Flags_1 array. Because the array type Packed_Flags is packed, we can now effectively use this type to store an object of Boolean type using just 1 bit of the memory, as indicated by the Flags_2'Component_Size attribute.

In many cases, we need to convert between a normal representation (such as the one used for the Flags_1 array above) to a packed representation (such as the one for the Flags_2 array). In many programming languages, this conversion may require writing custom code with manual bit-shifting and bit-masking to get the proper target representation. In Ada, however, we just need to indicate the actual type conversion, and the compiler takes care of generating code containing bit-shifting and bit-masking to performs the type conversion.

Let's modify the previous example and introduce this type conversion:





package Flag_Definitions is

   type Flags is
     array (Positive range <>) of Boolean;

   type Packed_Flags is
     array (Positive range <>) of Boolean
       with Pack;

   Default_Flags : constant Flags :=
     (True, True, False, True,
      False, False, True, True);

end Flag_Definitions;



with Ada.Text_IO;      use Ada.Text_IO;
with Flag_Definitions; use Flag_Definitions;

procedure Show_Flag_Conversion is
   Flags_1 : Flags (1 .. 8);
   Flags_2 : Packed_Flags (1 .. 8);
begin
   Flags_1 := Default_Flags;
   Flags_2 := Packed_Flags (Flags_1);

   for I in Flags_2'Range loop
      Put_Line (I'Image & ": "
                & Flags_1 (I)'Image & ", "
                & Flags_2 (I)'Image);
   end loop;
end Show_Flag_Conversion;

In this extended example, we're now declaring Default_Flags as an array of constant flags, which we use to initialize Flags_1.

The actual conversion happens with Flags_2 := Packed_Flags (Flags_1). Here, the type conversion Packed_Flags() indicates that we're converting from the normal representation (used for the Flags type) to the packed representation (used for Packed_Flags type). We don't need to write more code than that to perform the correct type conversion.

Also, by using the same strategy, we could read information from a packed representation. For example:

Flags_1 := Flags (Flags_2);

In this case, we use Flags() to convert from a packed representation to the normal representation.

We elaborate on the topic of converting between data representations in the section on changing data representation.

Trade-offs

As indicated previously, when we're using a packed representation (vs. using a standard unpacked representation), we're trading off speed of access for less memory consumption. The following table summarizes this:

Representation

More speed of access

Less memory consumption

Unpacked

X

Packed

X

On one hand, we have better memory usage when we apply packed representations because we may save many bits for each object. On the other hand, there's a cost associated with accessing those packed objects because they need to be unpacked before we can actually access them. In fact, the compiler generates code — using bit-shifting and bit-masking — that converts a packed representation into an unpacked representation, which we can then access. Also, when storing a packed object, the compiler generates code that converts the unpacked representation of the object into the packed representation.

This packing and unpacking mechanism has a performance cost associated with it, which results in less speed of access for packed objects. As usual in those circumstances, before using packed representation, we should assess whether memory constraints are more important than speed in our target architecture.

Record Representation and storage clauses

In this section, we discuss how to use record representation clauses to specify how a record is represented in memory. Our goal is to provide a brief introduction into the topic. If you're interested in more details, you can find a thorough discussion about record representation clauses in the Introduction to Embedded Systems Programming course.

Let's start with the simple approach of declaring a record type without providing further information. In this case, we're basically asking the compiler to select a reasonable representation for that record in the memory of our target architecture.

Let's see a simple example:





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record;

end P;

Considering a typical 64-bit PC architecture with 8-bit storage units, and Integer defined as a 32-bit type, we get this memory representation:

digraph foo { "Record_R" [ label = "{ position | component } | { { 0 | 1 | 2 | 3 } | A } | { { 4 | 5 | 6 | 7 } | B }" shape = "record" ]; }

Each storage unit is a position in memory. In the graph above, the numbers on the top (0, 1, 2, ...) represent those positions for record R.

In addition, we can show the bits that are used for components A and B:

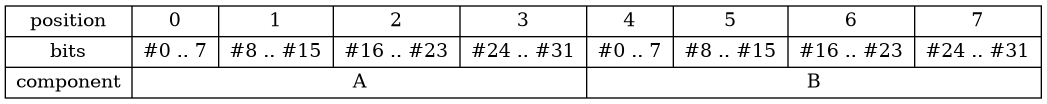

digraph foo { "Record_R" [ label = "{ position | bits | component } | { { { 0 | #0 .. 7 } | { 1 | #8 .. #15 } | { 2 | #16 .. #23 } | { 3 | #24 .. #31 } } | A } | { { { 4 | #0 .. 7 } | { 5 | #8 .. #15 } | { 6 | #16 .. #23 } | { 7 | #24 .. #31 } } | B }" shape = "record" ]; }

The memory representation we see in the graph above can be described in Ada using representation clauses, as you can see in the code starting at the for R use record line in the code example below — we'll discuss the syntax and further details right after this example.





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record;

   --  Representation clause for record R:
   for R use record
      A at 0 range 0 .. 31;
      --   ^ starting memory position
      B at 4 range 0 .. 31;
      --           ^ first bit .. last bit
   end record;

end P;

Here, we're specifying that the A component is stored in the bits #0 up to #31 starting at position #0. Note that the position itself doesn't represent an absolute address in the device's memory; instead, it's relative to the memory space reserved for that record. The B component has the same 32-bit range, but starts at position #4.

This is a generalized view of the syntax:

for Record_Type use record
   Component_Name at Start_Position
                  range First_Bit .. Last_Bit;
end record;

These are the elements we see above:

  • Component_Name: name of the component (from the record type declaration);

  • Start_Position: start position — in storage units — of the memory space reserved for that component;

  • First_Bit: first bit (in the start position) of the component;

  • Last_Bit: last bit of the component.

Note that the last bit of a component might be in a different storage unit. Since the Integer type has a larger width (32 bits) than the storage unit (8 bits), components of that type span over multiple storage units. Therefore, in our example, the first bit of component A is at position #0, while the last bit is at position #3.

Also note that the last eight bits of component A are bits #24 .. #31. If we think in terms of storage units, this corresponds to bits #0 .. #7 of position #3. However, when specifying the last bit in Ada, we always use the First_Bit value as a reference, not the position where those bits might end up. Therefore, we write range 0 .. 31, well knowing that those 32 bits span over four storage units (positions #0 .. #3).

In the Ada Reference Manual

Storage Place Attributes

We can retrieve information about the start position, and the first and last bits of a component by using the storage place attributes:

  • Position, which retrieves the start position of a component;

  • First_Bit, which retrieves the first bit of a component;

  • Last_Bit, which retrieves the last bit of a component.

Note, however, that these attributes can only be used with actual records, and not with record types.

We can revisit the previous example and verify how the compiler represents the R type in memory:





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record;

end P;



with Ada.Text_IO; use Ada.Text_IO;
with System;

with P;           use P;

procedure Show_Storage is
   R1 : R;
begin
   Put_Line ("R'Size:              "
             & R'Size'Image);
   Put_Line ("R'Object_Size:       "
             & R'Object_Size'Image);
   New_Line;

   Put_Line ("System.Storage_Unit: "
             & System.Storage_Unit'Image);
   New_Line;

   Put_Line ("R1.A'Position  : "
             & R1.A'Position'Image);
   Put_Line ("R1.A'First_Bit : "
             & R1.A'First_Bit'Image);
   Put_Line ("R1.A'Last_Bit  : "
             & R1.A'Last_Bit'Image);
   New_Line;

   Put_Line ("R1.B'Position  : "
             & R1.B'Position'Image);
   Put_Line ("R1.B'First_Bit : "
             & R1.B'First_Bit'Image);
   Put_Line ("R1.B'Last_Bit  : "
             & R1.B'Last_Bit'Image);
end Show_Storage;

On a typical 64-bit PC architecture, you probably see this output:

R'Size:               64
R'Object_Size:        64
System.Storage_Unit:  8

R1.A'Position  :  0
R1.A'First_Bit :  0
R1.A'Last_Bit  :  31

R1.B'Position  :  4
R1.B'First_Bit :  0
R1.B'Last_Bit  :  31

First of all, we see that the size of the R type is 64 bits, which can be explained by those two 32-bit integer components. Then, we see that components A and B start at positions #0 and #4, and each one makes use of bits in the range from #0 to #31. This matches the graph we've seen above.

In the Ada Reference Manual

Using Representation Clauses

We can use representation clauses to change the way the compiler handles memory for a record type. For example, let's say we want to have an empty storage unit between components A and B. We can use a representation clause where we specify that component B starts at position #5 instead of #4, leaving an empty byte after component A and before component B:

digraph foo { "Record_R" [ label = "{ position | bits | component } | { { { 0 | #0 .. 7 } | { 1 | #8 .. #15 } | { 2 | #16 .. #23 } | { 3 | #24 .. #31 } } | A } | { 4 | | } | { { { 5 | #0 .. 7 } | { 6 | #8 .. #15 } | { 7 | #16 .. #23 } | { 8 | #24 .. #31 } } | B }" shape = "record" ]; }

This is the code that implements that:





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record;

   for R use record
      A at 0 range 0 .. 31;
      B at 5 range 0 .. 31;
   end record;

end P;



with Ada.Text_IO; use Ada.Text_IO;

with P;           use P;

procedure Show_Empty_Byte is
begin
   Put_Line ("R'Size:        "
             & R'Size'Image);
   Put_Line ("R'Object_Size: "
             & R'Object_Size'Image);
end Show_Empty_Byte;

When running the application above, we see that, due to the extra byte in the record representation, the sizes increase. On a typical 64-bit PC, R'Size is now 76 bits, which reflects the additional eight bits that we introduced between components A and B. Depending on the target architecture, you may also see that R'Object_Size is now 96 bits, which is the size the compiler selects as the most appropriate for this record type. As we've mentioned in the previous section, we can use aspects to request a specific size to the compiler. In this case, we could use the Object_Size aspect:





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record
     with Object_Size => 72;

   for R use record
      A at 0 range 0 .. 31;
      B at 5 range 0 .. 31;
   end record;

end P;



with Ada.Text_IO; use Ada.Text_IO;

with P;           use P;

procedure Show_Empty_Byte is
begin
   Put_Line ("R'Size:        "
             & R'Size'Image);
   Put_Line ("R'Object_Size: "
             & R'Object_Size'Image);
end Show_Empty_Byte;

If the code compiles, R'Size and R'Object_Size should now have the same value.

Derived Types And Representation Clauses

In some cases, you might want to modify the memory representation of a record without impacting existing code. For example, you might want to use a record type that was declared in a package that you're not allowed to change. Also, you would like to modify its memory representation in your application. A nice strategy is to derive a type and use a representation clause for the derived type.

We can apply this strategy on our previous example. Let's say we would like to use record type R from package P in our application, but we're not allowed to modify package P — or the record type, for that matter. In this case, we could simply derive R as R_New and use a representation clause for R_New. This is exactly what we do in the specification of the child package P.Rep:





package P is

   type R is record
      A : Integer;
      B : Integer;
   end record;

end P;



package P.Rep is

   type R_New is new R
     with Object_Size => 72;

   for R_New use record
      A at 0 range 0 .. 31;
      B at 5 range 0 .. 31;
   end record;

end P.Rep;



with Ada.Text_IO; use Ada.Text_IO;

with P;           use P;
with P.Rep;       use P.Rep;

procedure Show_Empty_Byte is
begin
   Put_Line ("R'Size:        "
             & R'Size'Image);
   Put_Line ("R'Object_Size: "
             & R'Object_Size'Image);

   Put_Line ("R_New'Size:        "
             & R_New'Size'Image);
   Put_Line ("R_New'Object_Size: "
             & R_New'Object_Size'Image);
end Show_Empty_Byte;

When running this example, we see that the R type retains the memory representation selected by the compiler for the target architecture, while the R_New has the memory representation that we specified.

Representation on Bit Level

A very common application of representation clauses is to specify individual bits of a record. This is particularly useful, for example, when mapping registers or implementing protocols.

Let's consider the following fictitious register as an example:

digraph foo { "Record_R" [ label = "{ bit | component } | { { 0 | 1 } | S } | { { 2 | 3 } | (reserved) } | { 4 | Error } | { { 5 | 6 | 7 } | V1 }" shape = "record" ]; }

Here, S is the current status, Error is a flag, and V1 contains a value. Due to the fact that we can use representation clauses to describe individual bits of a register as records, the implementation becomes as simple as this:





package P is

  type Status is (Ready, Waiting,
                  Processing, Done);
  type UInt_3 is range 0 .. 2 ** 3 - 1;

   type Simple_Reg is record
      S     : Status;
      Error : Boolean;
      V1    : UInt_3;
   end record;

   for Simple_Reg use record
      S     at 0 range 0 .. 1;
      --  Bit #2 and 3: reserved!
      Error at 0 range 4 .. 4;
      V1    at 0 range 5 .. 7;
   end record;

end P;



with Ada.Text_IO; use Ada.Text_IO;

with P;           use P;

procedure Show_Simple_Reg is
begin
   Put_Line ("Simple_Reg'Size:        "
             & Simple_Reg'Size'Image);
   Put_Line ("Simple_Reg'Object_Size: "
             & Simple_Reg'Object_Size'Image);
end Show_Simple_Reg;

As we can see in the declaration of the Simple_Reg type, each component represents a field from our register, and it has a fixed location (which matches the register representation we see in the graph above). Any operation on the register is as simple as accessing the record component. For example:





with Ada.Text_IO; use Ada.Text_IO;

with P;           use P;

procedure Show_Simple_Reg is
   Default : constant Simple_Reg :=
               (S     => Ready,
                Error => False,
                V1    => 0);

   R : Simple_Reg := Default;
begin
   Put_Line ("R.S:  " & R.S'Image);

   R.V1 := 4;

   Put_Line ("R.V1: " & R.V1'Image);
end Show_Simple_Reg;

As we can see in the example, to retrieve the current status of the register, we just have to write R.S. To update the V1 field of the register with the value 4, we just have to write R.V1 := 4. No extra code — such as bit-masking or bit-shifting — is needed here.

In other languages

Some programming languages require that developers use complicated, error-prone approaches — which may include manually bit-shifting and bit-masking variables — to retrieve information from or store information to individual bits or registers. In Ada, however, this is efficiently handled by the compiler, so that developers only need to correctly describe the register mapping using representation clauses.

Changing Data Representation

Note

This section was originally written by Robert Dewar and published as Gem #27: Changing Data Representation and Gem #28.

A powerful feature of Ada is the ability to specify the exact data layout. This is particularly important when you have an external device or program that requires a very specific format. Some examples are:





package Communication is

   type Com_Packet is record
      Key : Boolean;
      Id  : Character;
      Val : Integer range 100 .. 227;
   end record;

   for Com_Packet use record
      Key at 0 range 0 .. 0;
      Id  at 0 range 1 .. 8;
      Val at 0 range 9 .. 15;
   end record;

end Communication;

which lays out the fields of a record, and in the case of Val, forces a biased representation in which all zero bits represents 100. Another example is:





package Array_Representation is

   type Val is (A, B, C, D, E, F, G, H);

   type Arr is array (1 .. 16) of Val
     with Component_Size => 3;

end Array_Representation;

which forces the components to take only 3 bits, crossing byte boundaries as needed. A final example is:





package Enumeration_Representation is

   type Status is (Off, On, Unknown);
   for Status use (Off     => 2#001#,
                   On      => 2#010#,
                   Unknown => 2#100#);

end Enumeration_Representation;

which allows specified values for an enumeration type, instead of the efficient default values of 0, 1, 2.

In all these cases, we might use these representation clauses to match external specifications, which can be very useful. The disadvantage of such layouts is that they are inefficient, and accessing individual components, or, in the case of the enumeration type, looping through the values can increase space and time requirements for the program code.

One approach that is often effective is to read or write the data in question in this specified form, but internally in the program represent the data in the normal default layout, allowing efficient access, and do all internal computations with this more efficient form.

To follow this approach, you will need to convert between the efficient format and the specified format. Ada provides a very convenient method for doing this, as described in RM 13.6 "Change of Representation".

The idea is to use type derivation, where one type has the specified format and the other has the normal default format. For instance for the array case above, we would write:





package Array_Representation is

   type Val is (A, B, C, D, E, F, G, H);
   type Arr is array (1 .. 16) of Val;

   type External_Arr is new Arr
     with Component_Size => 3;

end Array_Representation;

Now we read and write the data using the External_Arr type. When we want to convert to the efficient form, Arr, we simply use a type conversion.





with Array_Representation;
use  Array_Representation;

procedure Using_Array_For_IO is
   Input_Data  : External_Arr;
   Work_Data   : Arr;
   Output_Data : External_Arr;
begin
   --  (read data into Input_Data)

   --  Now convert to internal form
   Work_Data := Arr (Input_Data);

   --  (computations using efficient
   --   Work_Data form)

   --  Convert back to external form
   Output_Data := External_Arr (Work_Data);

end Using_Array_For_IO;

Using this approach, the quite complex task of copying all the data of the array from one form to another, with all the necessary masking and shift operations, is completely automatic.

Similar code can be used in the record and enumeration type cases. It is even possible to specify two different representations for the two types, and convert from one form to the other, as in:





package Enumeration_Representation is

   type Status_In is (Off, On, Unknown);
   type Status_Out is new Status_In;

   for Status_In use (Off     => 2#001#,
                      On      => 2#010#,
                      Unknown => 2#100#);
   for Status_Out use (Off     => 103,
                       On      => 1045,
                       Unknown => 7700);

end Enumeration_Representation;

There are two restrictions that must be kept in mind when using this feature. First, you have to use a derived type. You can't put representation clauses on subtypes, which means that the conversion must always be explicit. Second, there is a rule RM 13.1 (10) that restricts the placement of interesting representation clauses:

10 For an untagged derived type, no type-related representation items are allowed if the parent type is a by-reference type, or has any user-defined primitive subprograms.

All the representation clauses that are interesting from the point of view of change of representation are "type related", so for example, the following sequence would be illegal:





package Array_Representation is

   type Val is (A, B, C, D, E, F, G, H);
   type Arr is array (1 .. 16) of Val;

   procedure Rearrange (Arg : in out Arr);

   type External_Arr is new Arr
     with Component_Size => 3;

end Array_Representation;

Why these restrictions? Well, the answer is a little complex, and has to do with efficiency considerations, which we will address below.

Restrictions

In the previous subsection, we discussed the use of derived types and representation clauses to achieve automatic change of representation. More accurately, this feature is not completely automatic, since it requires you to write an explicit conversion. In fact there is a principle behind the design here which says that a change of representation should never occur implicitly behind the back of the programmer without such an explicit request by means of a type conversion.

The reason for that is that the change of representation operation can be very expensive, since in general it can require component by component copying, changing the representation on each component.

Let's have a look at the -gnatG expanded code to see what is hidden under the covers here. For example, the conversion Arr (Input_Data) from the previous example generates the following expanded code:

B26b : declare
   [subtype p__TarrD1 is integer range 1 .. 16]
   R25b : p__TarrD1 := 1;
begin
   for L24b in 1 .. 16 loop
      [subtype p__arr___XP3 is
        system__unsigned_types__long_long_unsigned range 0 ..
        16#FFFF_FFFF_FFFF#]
      work_data := p__arr___XP3!((work_data and not shift_left!(
        16#7#, 3 * (integer(L24b - 1)))) or shift_left!(p__arr___XP3!
        (input_data (R25b)), 3 * (integer(L24b - 1))));
      R25b := p__TarrD1'succ(R25b);
   end loop;
end B26b;

That's pretty horrible! In fact, we could have simplified it for this section, but we have left it in its original form, so that you can see why it is nice to let the compiler generate all this stuff so you don't have to worry about it yourself.

Given that the conversion can be pretty inefficient, you don't want to convert backwards and forwards more than you have to, and the whole approach is only worthwhile if we'll be doing extensive computations involving the value.

The expense of the conversion explains two aspects of this feature that are not obvious. First, why do we require derived types instead of just allowing subtypes to have different representations, avoiding the need for an explicit conversion?

The answer is precisely that the conversions are expensive, and you don't want them happening behind your back. So if you write the explicit conversion, you get all the gobbledygook listed above, but you can be sure that this never happens unless you explicitly ask for it.

This also explains the restriction we mentioned in previous subsection from RM 13.1 (10):

10 For an untagged derived type, no type-related representation items are allowed if the parent type is a by-reference type, or has any user-defined primitive subprograms.

It turns out this restriction is all about avoiding implicit changes of representation. Let's have a look at how type derivation works when there are primitive subprograms defined at the point of derivation. Consider this example:





package My_Ints is

   type My_Int_1 is range 1 .. 10;

   function Odd (Arg : My_Int_1)
                 return Boolean;

   type My_Int_2 is new My_Int_1;

end My_Ints;



package body My_Ints is

   function Odd (Arg : My_Int_1)
                return Boolean is
     (True);
   --  Dummy implementation!

end My_Ints;

Now when we do the type derivation, we inherit the function Odd for My_Int_2. But where does this function come from? We haven't written it explicitly, so the compiler somehow materializes this new implicit function. How does it do that?

We might think that a complete new function is created including a body in which My_Int_2 replaces My_Int_1, but that would be impractical and expensive. The actual mechanism avoids the need to do this by use of implicit type conversions. Suppose after the above declarations, we write:





with My_Ints; use My_Ints;

procedure Using_My_Int is
   Var : My_Int_2;
begin

   if Odd (Var) then
      --   ^ Calling Odd function
      --     for My_Int_2 type.
      null;
   end if;

end Using_My_Int;

The compiler translates this as:





with My_Ints; use My_Ints;

procedure Using_My_Int is
   Var : My_Int_2;
begin

   if Odd (My_Int_1 (Var)) then
      --   ^ Converting My_Int_2 to
      --     My_Int_1 type before
      --     calling Odd function.
      null;
   end if;

end Using_My_Int;

This implicit conversion is a nice trick, it means that we can get the effect of inheriting a new operation without actually having to create it. Furthermore, in a case like this, the type conversion generates no code, since My_Int_1 and My_Int_2 have the same representation.

But the whole point is that they might not have the same representation if one of them had a representation clause that made the representations different, and in this case the implicit conversion inserted by the compiler could be expensive, perhaps generating the junk we quoted above for the Arr case. Since we never want that to happen implicitly, there is a rule to prevent it.

The business of forbidding by-reference types (which includes all tagged types) is also driven by this consideration. If the representations are the same, it is fine to pass by reference, even in the presence of the conversion, but if there was a change of representation, it would force a copy, which would violate the by-reference requirement.

So to summarize this section, on the one hand Ada gives you a very convenient way to trigger these complex conversions between different representations. On the other hand, Ada guarantees that you never get these potentially expensive conversions happening unless you explicitly ask for them.

Valid Attribute

When receiving data from external sources, we're subjected to problems such as transmission errors. If not handled properly, erroneous data can lead to major issues in an application.

One of those issues originates from the fact that transmission errors might lead to invalid information stored in memory. When proper checks are active, using invalid information is detected at runtime and an exception is raised at this point, which might then be handled by the application.

Instead of relying on exception handling, however, we could instead ensure that the information we're about to use is valid. We can do this by using the Valid attribute. For example, if we have a variable Var, we can verify that the value stored in Var is valid by writing Var'Valid, which returns a Boolean value. Therefore, if the value of Var isn't valid, Var'Valid returns False, so we can have code that handles this situation before we actually make use of Var. In other words, instead of handling a potential exception in other parts of the application, we can proactively verify that input information is correct and avoid that an exception is raised.

In the next example, we show an application that

  • generates a file containing mock-up data, and then

  • reads information from this file as state values.

The mock-up data includes valid and invalid states.





procedure Create_Test_File (File_Name : String);



with Ada.Sequential_IO;

procedure Create_Test_File (File_Name : String)
is
   package Integer_Sequential_IO is new
     Ada.Sequential_IO (Integer);
   use Integer_Sequential_IO;

   F : File_Type;
begin
   Create (F, Out_File, File_Name);
   Write (F,  1);
   Write (F,  2);
   Write (F,  4);
   Write (F,  3);
   Write (F,  2);
   Write (F,  10);
   Close (F);
end Create_Test_File;



with Ada.Sequential_IO;

package States is

   type State is (Off, On, Waiting)
     with Size => Integer'Size;

   for State use (Off     => 1,
                  On      => 2,
                  Waiting => 4);

   package State_Sequential_IO is new
     Ada.Sequential_IO (State);

   procedure Read_Display_States
     (File_Name : String);

end States;



with Ada.Text_IO; use Ada.Text_IO;

package body States is

   procedure Read_Display_States
     (File_Name : String)
   is
      use State_Sequential_IO;

      F : State_Sequential_IO.File_Type;
      S : State;

      procedure Display_State (S : State) is
      begin
         --  Before displaying the value,
         --  check whether it's valid or not.
         if S'Valid then
            Put_Line (S'Image);
         else
            Put_Line ("Invalid value detected!");
         end if;
      end Display_State;

   begin
      Open (F, In_File, File_Name);

      while not End_Of_File (F) loop
         Read (F, S);
         Display_State (S);
      end loop;

      Close (F);
   end Read_Display_States;

end States;



with States;           use States;
with Create_Test_File;

procedure Show_States_From_File is
   File_Name : constant String := "data.bin";
begin
   Create_Test_File (File_Name);
   Read_Display_States (File_Name);
end Show_States_From_File;

When running the application, you'd see this output:

OFF
ON
WAITING
Invalid value detected!
ON
Invalid value detected!

Let's start our discussion on this example with the States package, which contains the declaration of the State type. This type is a simple enumeration containing three states: Off, On and Waiting. We're assigning specific integer values for this type by declaring an enumeration representation clause. Note that we're using the Size aspect to request that objects of this type have the same size as the Integer type. This becomes important later on when parsing data from the file.

In the Create_Test_File procedure, we create a file containing integer values, which is parsed later by the Read_Display_States procedure. The Create_Test_File procedure doesn't contain any reference to the State type, so we're not constrained to just writing information that is valid for this type. On the contrary, this procedure makes use of the Integer type, so we can write any integer value to the file. We use this strategy to write both valid and invalid values of State to the file. This allows us to simulate an environment where transmission errors occur.

We call the Read_Display_States procedure to read information from the file and display each state stored in the file. In the main loop of this procedure, we call Read to read a state from the file and store it in the S variable. We then call the nested Display_State procedure to display the actual state stored in S. The most important line of code in the Display_State procedure is the one that uses the Valid attribute:

if S'Valid then

In this line, we're verifying that the S variable contains a valid state before displaying the actual information from S. If the value stored in S isn't valid, we can handle the issue accordingly. In this case, we're simply displaying a message indicating that an invalid value was detected. If we didn't have this check, the Constraint_Error exception would be raised when trying to use invalid data stored in S — this would happen, for example, after reading the integer value 3 from the input file.

In summary, using the Valid attribute is a good strategy we can employ when we know that information stored in memory might be corrupted.

In the Ada Reference Manual

Unchecked Union

We've introduced variant records back in the Introduction to Ada course. In simple terms, a variant record is a record with discriminants that allows for changing its structure. Basically, it's a record containing a case. (We talk again about variant records in another chapter.)

The State_Or_Integer declaration in the States package below is an example of a variant record:





package States is

   type State is (Off, On, Waiting)
     with Size => Integer'Size;

   for State use (Off     => 1,
                  On      => 2,
                  Waiting => 4);

   type State_Or_Integer (Use_Enum : Boolean) is
   record
      case Use_Enum is
         when False => I : Integer;
         when True  => S : State;
      end case;
   end record;

   procedure Display_State_Value
     (V : State_Or_Integer);

end States;



with Ada.Text_IO; use Ada.Text_IO;

package body States is

   procedure Display_State_Value
     (V : State_Or_Integer)
   is
   begin
      Put_Line ("State: " & V.S'Image);
      Put_Line ("Value: " & V.I'Image);
   end Display_State_Value;

end States;

As mentioned in the previous course, if you try to access a component that is not valid for your record, a Constraint_Error exception is raised. For example, in the implementation of the Display_State_Value procedure, we're trying to retrieve the value of the integer component (I) of the V record. When calling this procedure, the Constraint_Error exception is raised as expected because Use_Enum is set to True, so that the I component is invalid — only the S component is valid in this case.





with States; use States;

procedure Show_Variant_Rec_Error is
   V : State_Or_Integer (Use_Enum => True);
begin
   V.S := On;
   Display_State_Value (V);
end Show_Variant_Rec_Error;

In addition to not being able to read the value of a component that isn't valid, assigning a value to a component that isn't valid also raises an exception at runtime. In this example, we cannot assign to V.I:





with States; use States;

procedure Show_Variant_Rec_Error is
   V : State_Or_Integer (Use_Enum => True);
begin
   V.I := 4;
   --  Error: V.I cannot be accessed because
   --         Use_Enum is set to True.
end Show_Variant_Rec_Error;

We may circumvent this limitation by using the Unchecked_Union aspect. For example, we can derive a new type from State_Or_Integer and use this aspect in its declaration. We do this in the declaration of the Unchecked_State_Or_Integer type below.





package States is

   type State is (Off, On, Waiting)
     with Size => Integer'Size;

   for State use (Off     => 1,
                  On      => 2,
                  Waiting => 4);

   type State_Or_Integer (Use_Enum : Boolean) is
   record
      case Use_Enum is
         when False => I : Integer;
         when True  => S : State;
      end case;
   end record;

   type Unchecked_State_Or_Integer
     (Use_Enum : Boolean) is new
       State_Or_Integer (Use_Enum)
         with Unchecked_Union;

   procedure Display_State_Value
     (V : Unchecked_State_Or_Integer);

end States;



with Ada.Text_IO; use Ada.Text_IO;

package body States is

   procedure Display_State_Value
     (V : Unchecked_State_Or_Integer)
   is
   begin
      Put_Line ("State: " & V.S'Image);
      Put_Line ("Value: " & V.I'Image);
   end Display_State_Value;

end States;

Because we now use the Unchecked_State_Or_Integer type for the input parameter of the Display_State_Value procedure, no exception is raised at runtime, as both components are now accessible. For example:





with States; use States;

procedure Show_Unchecked_Union is
   V : State_Or_Integer (Use_Enum => True);
begin
   V.S := On;
   Display_State_Value
     (Unchecked_State_Or_Integer (V));
end Show_Unchecked_Union;

Note that, in the call to the Display_State_Value procedure, we first need to convert the V argument from the State_Or_Integer to the Unchecked_State_Or_Integer type.

Also, we can assign to any of the components of a record that has the Unchecked_Union aspect. In our example, we can now assign to both the S and the I components of the V record:





with States; use States;

procedure Show_Unchecked_Union is
   V : Unchecked_State_Or_Integer
         (Use_Enum => True);
begin
   V := (Use_Enum => True, S => On);
   Display_State_Value (V);

   V := (Use_Enum => False, I => 4);
   Display_State_Value (V);
end Show_Unchecked_Union;

In the example above, we're use an aggregate in the assignments to V. By doing so, we avoid that Use_Enum is set to the wrong component. For example:





with States; use States;

procedure Show_Unchecked_Union is
   V : Unchecked_State_Or_Integer
         (Use_Enum => True);
begin
   V.S := On;
   Display_State_Value (V);

   V.I := 4;
   --  Error: cannot directly assign to V.I,
   --         as Use_Enum is set to True.

   Display_State_Value (V);
end Show_Unchecked_Union;

Here, even though the record has the Unchecked_Union attribute, we cannot directly assign to the I component because Use_Enum is set to True, so only the S is accessible. We can, however, read its value, as we do in the Display_State_Value procedure.

Be aware that, due to the fact the union is not checked, we might write invalid data to the record. In the example below, we initialize the I component with 3, which is a valid integer value, but results in an invalid value for the S component, as the value 3 cannot be mapped to the representation of the State type.





with States; use States;

procedure Show_Unchecked_Union is
   V : Unchecked_State_Or_Integer
         (Use_Enum => True);
begin
   V := (Use_Enum => False, I => 3);
   Display_State_Value (V);
end Show_Unchecked_Union;

To mitigate this problem, we could use the Valid attribute — discussed in the previous section — for the S component before trying to use its value in the implementation of the Display_State_Value procedure:





with Ada.Text_IO; use Ada.Text_IO;

package body States is

   procedure Display_State_Value
     (V : Unchecked_State_Or_Integer)
   is
   begin
      if V.S'Valid then
         Put_Line ("State: " & V.S'Image);
      else
         Put_Line ("State: <invalid>");
      end if;
      Put_Line ("Value: " & V.I'Image);
   end Display_State_Value;

end States;



with States; use States;

procedure Show_Unchecked_Union is
   V : Unchecked_State_Or_Integer
         (Use_Enum => True);
begin
   V := (Use_Enum => False, I => 3);
   Display_State_Value (V);
end Show_Unchecked_Union;

However, in general, you should avoid using the Unchecked_Union aspect due to the potential issues you might introduce into your application. In the majority of the cases, you don't need it at all — except for special cases such as when interfacing with C code that makes use of union types or solving very specific problems when doing low-level programming.

In the Ada Reference Manual

Shared variable control

Ada has built-in support for handling both volatile and atomic data. Let's start by discussing volatile objects.

In the Ada Reference Manual

Volatile

A volatile object can be described as an object in memory whose value may change between two consecutive memory accesses of a process A — even if process A itself hasn't changed the value. This situation may arise when an object in memory is being shared by multiple threads. For example, a thread B may modify the value of that object between two read accesses of a thread A. Another typical example is the one of memory-mapped I/O, where the hardware might be constantly changing the value of an object in memory.

Because the value of a volatile object may be constantly changing, a compiler cannot generate code to store the value of that object in a register and then use the value from the register in subsequent operations. Storing into a register is avoided because, if the value is stored there, it would be outdated if another process had changed the volatile object in the meantime. Instead, the compiler generates code in such a way that the process must read the value of the volatile object from memory for each access.

Let's look at a simple example:





with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Volatile_Object is
   Val : Long_Float with Volatile;
begin
   Val := 0.0;
   for I in 0 .. 999 loop
      Val := Val + 2.0 * Long_Float (I);
   end loop;

   Put_Line ("Val: " & Long_Float'Image (Val));
end Show_Volatile_Object;

In this example, Val has the Volatile aspect, which makes the object volatile. We can also use the Volatile aspect in type declarations. For example:





package Shared_Var_Types is

   type Volatile_Long_Float is new
     Long_Float with Volatile;

end Shared_Var_Types;



with Ada.Text_IO;      use Ada.Text_IO;
with Shared_Var_Types; use Shared_Var_Types;

procedure Show_Volatile_Type is
   Val : Volatile_Long_Float;
begin
   Val := 0.0;
   for I in 0 .. 999 loop
      Val := Val + 2.0 * Volatile_Long_Float (I);
   end loop;

   Put_Line ("Val: "
             & Volatile_Long_Float'Image (Val));
end Show_Volatile_Type;

Here, we're declaring a new type Volatile_Long_Float in the Shared_Var_Types package. This type is based on the Long_Float type and uses the Volatile aspect. Any object of this type is automatically volatile.

In addition to that, we can declare components of an array to be volatile. In this case, we can use the Volatile_Components aspect in the array declaration. For example:





with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Volatile_Array_Components is
   Arr : array (1 .. 2) of Long_Float
           with Volatile_Components;
begin
   Arr := (others => 0.0);

   for I in 0 .. 999 loop
      Arr (1) := Arr (1) +  2.0 * Long_Float (I);
      Arr (2) := Arr (2) + 10.0 * Long_Float (I);
   end loop;

   Put_Line ("Arr (1): "
             & Long_Float'Image (Arr (1)));
   Put_Line ("Arr (2): "
             & Long_Float'Image (Arr (2)));
end Show_Volatile_Array_Components;

Note that it's possible to use the Volatile aspect for the array declaration as well:





package Shared_Var_Types is

private
   Arr : array (1 .. 2) of Long_Float
           with Volatile;

end Shared_Var_Types;

Note that, if the Volatile aspect is specified for an object, then the Volatile_Components aspect is also specified automatically — if it makes sense in the context, of course. In the example above, even though Volatile_Components isn't specified in the declaration of the Arr array , it's automatically set as well.

Independent

When you write code to access a single object in memory, you might actually be accessing multiple objects at once. For example, when you declare types that make use of representation clauses — as we've seen in previous sections —, you might be accessing multiple objects that are grouped together in a single storage unit. For example, if you have components A and B stored in the same storage unit, you cannot update A without actually writing (the same value) to B. Those objects aren't independently addressable because, in order to access one of them, we have to actually address multiple objects at once.

When an object is independently addressable, we call it an independent object. In this case, we make sure that, when accessing that object, we won't be simultaneously accessing another object. As a consequence, this feature limits the way objects can be represented in memory, as we'll see next.

To indicate that an object is independent, we use the Independent aspect:





package Shared_Var_Types is

   I : Integer with Independent;

end Shared_Var_Types;

Similarly, we can use this aspect when declaring types:





package Shared_Var_Types is

   type Independent_Boolean is new Boolean
     with Independent;

   type Flags is record
      F1 : Independent_Boolean;
      F2 : Independent_Boolean;
   end record;

end Shared_Var_Types;

In this example, we're declaring the Independent_Boolean type and using it in the declaration of the Flag record type. Let's now derive the Flags type and use a representation clause for the derived type:





package Shared_Var_Types.Representation is

   type Rep_Flags is new Flags;

   for Rep_Flags use record
      F1 at 0 range 0 .. 0;
      F2 at 0 range 1 .. 1;
      --            ^  ERROR: start position of
      --                      F2 is wrong!
      --    ^          ERROR: F1 and F2 share the
      --                      same storage unit!
   end record;

end Shared_Var_Types.Representation;

As you can see when trying to compile this example, the representation clause that we used for Rep_Flags isn't following these limitations:

  1. The size of each independent component must be a multiple of a storage unit.

  2. The start position of each independent component must be a multiple of a storage unit.

For example, for architectures that have a storage unit of one byte — such as standard desktop computers —, this means that the size and the position of independent components must be a multiple of a byte. Let's correct the issues in the code above by:

  • setting the size of each independent component to correspond to Storage_Unit — using a range between 0 and Storage_Unit - 1 —, and

  • setting the start position to zero.

This is the corrected version:





with System;

package Shared_Var_Types.Representation is

   type Rep_Flags is new Flags;

   for Rep_Flags use record
      F1 at 0 range 0 .. System.Storage_Unit - 1;
      F2 at 1 range 0 .. System.Storage_Unit - 1;
   end record;

end Shared_Var_Types.Representation;

Note that the representation that we're now using for Rep_Flags is most likely the representation that the compiler would have chosen for this data type. We could, however, have added an empty storage unit between F1 and F2 — by simply writing F2 at 2 ...:





with System;

package Shared_Var_Types.Representation is

   type Rep_Flags is new Flags;

   for Rep_Flags use record
      F1 at 0 range 0 .. System.Storage_Unit - 1;
      F2 at 2 range 0 .. System.Storage_Unit - 1;
   end record;

end Shared_Var_Types.Representation;

As long as we follow the rules for independent objects, we're still allowed to use representation clauses that don't correspond to the one that the compiler might select.

For arrays, we can use the Independent_Components aspect:





package Shared_Var_Types is

   Flags : array (1 .. 8) of Boolean
             with Independent_Components;

end Shared_Var_Types;

We've just seen in a previous example that some representation clauses might not work with objects and types that have the Independent aspect. The same restrictions apply when we use the Independent_Components aspect. For example, this aspect prevents that array components are packed when the Pack aspect is used. Let's discuss the following erroneous code example:





package Shared_Var_Types is

   type Flags is
     array (Positive range <>) of Boolean
       with Independent_Components, Pack;

   F : Flags (1 .. 8) with Size => 8;

end Shared_Var_Types;

As expected, this code doesn't compile. Here, we can have either independent components, or packed components. We cannot have both at the same time because packed components aren't independently addressable. The compiler warns us that the Pack aspect won't have any effect on independent components. When we use the Size aspect in the declaration of F, we confirm this limitation. If we remove the Size aspect, however, the code is compiled successfully because the compiler ignores the Pack aspect and allocates a larger size for F:





package Shared_Var_Types is

   type Flags is
     array (Positive range <>) of Boolean
       with Independent_Components, Pack;

end Shared_Var_Types;



with Ada.Text_IO; use Ada.Text_IO;
with System;

with Shared_Var_Types; use Shared_Var_Types;

procedure Show_Flags_Size is
   F : Flags (1 .. 8);
begin
   Put_Line ("Flags'Size:      "
             & F'Size'Image & " bits");
   Put_Line ("Flags (1)'Size:  "
             & F (1)'Size'Image & " bits");
   Put_Line ("# storage units: "
             & Integer'Image
                 (F'Size /
                  System.Storage_Unit));
end Show_Flags_Size;

As you can see in the output of the application, even though we specify the Pack aspect for the Flags type, the compiler allocates eight storage units, one per each component of the F array.

Atomic

An atomic object is an object that only accepts atomic reads and updates. The Ada standard specifies that "for an atomic object (including an atomic component), all reads and updates of the object as a whole are indivisible." In this case, the compiler must generate Assembly code in such a way that reads and updates of an atomic object must be done in a single instruction, so that no other instruction could execute on that same object before the read or update completes.

In other contexts

Generally, we can say that operations are said to be atomic when they can be completed without interruptions. This is an important requirement when we're performing operations on objects in memory that are shared between multiple processes.

This definition of atomicity above is used, for example, when implementing databases. However, for this section, we're using the term "atomic" differently. Here, it really means that reads and updates must be performed with a single Assembly instruction.

For example, if we have a 32-bit object composed of four 8-bit bytes, the compiler cannot generate code to read or update the object using four 8-bit store / load instructions, or even two 16-bit store / load instructions. In this case, in order to maintain atomicity, the compiler must generate code using one 32-bit store / load instruction.

Because of this strict definition, we might have objects for which the Atomic aspect cannot be specified. Lots of machines support integer types that are larger than the native word-sized integer. For example, a 16-bit machine probably supports both 16-bit and 32-bit integers, but only 16-bit integer objects can be marked as atomic — or, more generally, only objects that fit into at most 16 bits.

Atomicity may be important, for example, when dealing with shared hardware registers. In fact, for certain architectures, the hardware may require that memory-mapped registers are handled atomically. In Ada, we can use the Atomic aspect to indicate that an object is atomic. This is how we can use the aspect to declare a shared hardware register:





with System;

package Shared_Var_Types is

private
   R : Integer
         with Atomic,
              Address =>
                System'To_Address (16#FFFF00A0#);

end Shared_Var_Types;

Note that the Address aspect allows for assigning a variable to a specific location in the memory. In this example, we're using this aspect to specify the address of the memory-mapped register.

Later on, we talk again about the Address aspect and the GNAT-specific System'To_Address attribute.

In addition to atomic objects, we can declare atomic types — similar to what we've seen before for volatile objects. For example:





with System;

package Shared_Var_Types is

   type Atomic_Integer is new Integer
     with Atomic;

private
   R : Atomic_Integer
         with Address =>
                System'To_Address (16#FFFF00A0#);

end Shared_Var_Types;

In this example, we're declaring the Atomic_Integer type, which is an atomic type. Objects of this type — such as R in this example — are automatically atomic.

We can also declare atomic array components:





package Shared_Var_Types is

private
   Arr : array (1 .. 2) of Integer
           with Atomic_Components;

end Shared_Var_Types;

This example shows the declaration of the Arr array, which has atomic components — the atomicity of its components is indicated by the Atomic_Components aspect.

Note that if an object is atomic, it is also volatile and independent. In other words, these type declarations are equivalent:





package Shared_Var_Types is

   type Atomic_Integer_1 is new Integer
     with Atomic;

   type Atomic_Integer_2 is new Integer
     with Atomic,
          Volatile,
          Independent;

end Shared_Var_Types;

A simular rule applies to components of an array. When we use the Atomic_Components, the following aspects are implied: Volatile, Volatile_Components and Independent_Components. For example, these array declarations are equivalent:





package Shared_Var_Types is

   Arr_1 : array (1 .. 2) of Integer
             with Atomic_Components;

   Arr_2 : array (1 .. 2) of Integer
             with Atomic_Components,
                  Volatile,
                  Volatile_Components,
                  Independent_Components;

end Shared_Var_Types;

Addresses

In other languages, such as C, the concept of pointers and addresses plays a prominent role. (In fact, in C, many optimizations rely on the usage of pointer arithmetic.) The concept of addresses does exist in Ada, but it's mainly reserved for very specific applications, mostly related to low-level programming. In general, other approaches — such as using access types — are more than sufficient. (We discuss access types in another chapter. Also, later on in that chapter, we discuss the relation between access types and addresses.) In this section, we discuss some details about using addresses in Ada.

We make use of the Address type, which is defined in the System package, to handle addresses. In contrast to other programming languages (such as C or C++), an address in Ada isn't an integer value: its definition depends on the compiler implementation, and it's actually driven directly by the hardware. For now, let's consider it to usually be a private type — this can be seen as an attempt to achieve application code portability, given the variations in hardware that result in different definitions of what an address actually is.

The Address type has support for address comparison and address arithmetic (also known as pointer arithmetic in C). We discuss these topics later in this section. First, let's talk about the Address attribute and the Address aspect.

In the Ada Reference Manual

Address attribute

The Address attribute allows us to get the address of an object. For example:





with System; use System;

procedure Use_Address is
   I : aliased Integer := 5;
   A : Address;
begin
   A := I'Address;
end Use_Address;

Here, we're assigning the address of the I object to the A address.

In the GNAT toolchain

GNAT offers a very useful extension to the System package to retrieve a string for an address: System.Address_Image. This is the function profile:

function System.Address_Image
  (A : System.Address) return String;

We can use this function to display the address in an user message, for example:





with Ada.Text_IO; use Ada.Text_IO;
with System.Address_Image;

procedure Show_Address_Attribute is
   I  : aliased Integer := 5;
begin
   Put_Line ("Address : "
             & System.Address_Image (I'Address));
end Show_Address_Attribute;

In the Ada Reference Manual

Address aspect

Usually, we let the compiler select the address of an object in memory, or let it use a register to store that object. However, we can specify the address of an object with the Address aspect. In this case, the compiler won't select an address automatically, but use the address that we're specifying. For example:





with System; use System;
with System.Address_Image;

with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Address is

   I_Main   : aliased Integer;
   I_Mapped : Integer
                with Address => I_Main'Address;
begin
   Put_Line ("I_Main'Address   : "
              & System.Address_Image
                  (I_Main'Address));
   Put_Line ("I_Mapped'Address : "
              & System.Address_Image
                  (I_Mapped'Address));
end Show_Address;

This approach allows us to create an overlay. For example:







with Ada.Text_IO; use Ada.Text_IO;

procedure Simple_Overlay is
   type State is (Off, State_1, State_2)
     with Size => Integer'Size;

   for State use (Off     => 0,
                  State_1 => 32,
                  State_2 => 64);

   S : State;
   I : Integer
     with Address => S'Address, Import, Volatile;
begin
   S := State_2;
   Put_Line ("I = " & Integer'Image (I));
end Simple_Overlay;















































































































































































































































---- run info:

Here, I is an overlay of S, as it uses S'Address. With this approach, we can either use the enumeration directly (by using the S object of State type) or its integer representation (by using the I variable).

In the GNAT toolchain

We could call the GNAT-specific System'To_Address attribute when using the Address aspect, as we did while talking about the Atomic aspect:





with System;

package Shared_Var_Types is

private
   R : Integer
         with Atomic,
              Address =>
                System'To_Address (16#FFFF00A0#);

end Shared_Var_Types;

In this case, R will refer to the address in memory that we're specifying (16#FFFF00A0# in this case).

As explained in the GNAT Reference Manual, the System'To_Address attribute denotes a function identical to To_Address (from the System.Storage_Elements package) except that it is a static attribute. (We talk about the To_Address function function later on.)

In the Ada Reference Manual

Address comparison

We can compare addresses using the common comparison operators. For example:





with System; use System;
with System.Address_Image;

with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Address is

   I, J : Integer;
begin
   Put_Line ("I'Address   : "
              & System.Address_Image
                  (I'Address));
   Put_Line ("J'Address   : "
              & System.Address_Image
                  (J'Address));

   if I'Address = J'Address then
      Put_Line ("I'Address = J'Address");
   elsif I'Address < J'Address then
      Put_Line ("I'Address < J'Address");
   else
      Put_Line ("I'Address > J'Address");
   end if;
end Show_Address;

In this example, we compare the address of the I object with the address of the J object using the =, < and > operators.

In the Ada Reference Manual

Address to integer conversion

The System.Storage_Elements package offers an integer representation of an address via the Integer_Address type, which is an integer type unrelated to common integer types such as Integer and Long_Integer. (The actual definition of Integer_Address is compiler-dependent, and it can be a signed or modular integer subtype.)

We can convert between the Address and Integer_Address types by using the To_Address and To_Integer functions. Let's see an example:





with System;      use System;

with System.Storage_Elements;
use  System.Storage_Elements;

with System.Address_Image;

with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Address is
   I      : Integer;
   A1, A2 : Address;
   IA     : Integer_Address;
begin
   A1 := I'Address;
   IA := To_Integer (A1);
   A2 := To_Address (IA);

   Put_Line ("A1 : "
              & System.Address_Image (A1));
   Put_Line ("IA : "
              & Integer_Address'Image (IA));
   Put_Line ("A2 : "
              & System.Address_Image (A2));
end Show_Address;

Here, we retrieve the address of the I object and store it in the A1 address. Then, we convert A1 to an integer address by calling To_Integer (and store it in IA). Finally, we convert this integer address back to an actual address by calling To_Address.

In the Ada Reference Manual

Address arithmetic

Although Ada supports address arithmetic, which we discuss in this section, it should be reserved for very specific applications such as low-level programming. However, even in situations that require close access to the underlying hardware, using address arithmetic might not be the approach you should consider — make sure to evaluate other options first!

Ada supports address arithmetic via the System.Storage_Elements package, which includes operators such as + and - for addresses. Let's see a code example where we iterate over an array by incrementing an address that points to each component in memory:





with System;      use System;

with System.Storage_Elements;
use  System.Storage_Elements;

with System.Address_Image;

with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Address is

   Arr : array (1 .. 10) of Integer;
   A   : Address := Arr'Address;
   --               ^^^^^^^^^^^
   --   Initializing address object with
   --   address of the first component of Arr.
   --
   --   We could write this as well:
   --   ___ := Arr (1)'Address

begin
   for I in Arr'Range loop
      declare
         Curr : Integer
                  with Address => A;
      begin
         Curr := I;
         Put_Line ("Curr'Address : "
                   & System.Address_Image
                       (Curr'Address));
      end;

      --
      --  Address arithmetic
      --
      A := A + Storage_Offset (Integer'Size)
                 / Storage_Unit;
      --     ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
      --       Moving to next component
   end loop;

   for I in Arr'Range loop
     Put_Line ("Arr ("
               & Integer'Image (I)
               & ") :"
               & Integer'Image (Arr (I)));
   end loop;
end Show_Address;

In this example, we initialize the address A by retrieving the address of the first component of the array Arr. (Note that we could have written Arr(1)'Address instead of Arr'Address. In any case, the language guarantees that Arr'Address gives us the address of the first component, i.e. Arr'Address = Arr(1)'Address.)

Then, in the loop, we declare an overlay Curr using the current value of the A address. We can then operate on this overlay — here, we assign I to Curr. Finally, in the loop, we increment address A and make it point to the next component in the Arr array — to do so, we calculate the size of an Integer component in storage units. (For details on storage units, see the section on storage size attribute.)

In other languages

The code example above corresponds (more or less) to the following C code:





#include <stdio.h>

int main(int argc, const char * argv[])
{
    int i;
    int arr[10];

    int *a = arr;
    /* int *a = &arr[0]; */

    for (i = 0; i < 10; i++)
    {
        *a++ = i;
        printf("curr address: %p\n", a);
    }

    for (i = 0; i < 10; i++)
    {
        printf("arr[%d]: %d\n", i, arr[i]);
    }

    return 0;
}

While pointer arithmetic is very common in C, using address arithmetic in Ada is far from common, and it should be only used when it's really necessary to do so.

In the Ada Reference Manual

Discarding names

As we know, we can use the Image attribute of a type to get a string associated with this type. This is useful for example when we want to display a user message for an enumeration type:





with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Enumeration_Image is

   type Months is
     (January, February, March, April,
      May, June, July, August, September,
      October, November, December);

   M : constant Months := January;
begin
   Put_Line ("Month: "
             & Months'Image (M));
end Show_Enumeration_Image;

This is similar to having this code:





with Ada.Text_IO; use Ada.Text_IO;

procedure Show_Enumeration_Image is

   type Months is
     (January, February, March, April,
      May, June, July, August, September,
      October, November, December);

   M : constant Months := January;

   function Months_Image (M : Months)
                          return String is
   begin
      case M is
         when January   => return "JANUARY";
         when February  => return "FEBRUARY";
         when March     => return "MARCH";
         when April     => return "APRIL";
         when May       => return "MAY";
         when June      => return "JUNE";
         when July      => return "JULY";
         when August    => return "AUGUST";
         when September => return "SEPTEMBER";
         when October   => return "OCTOBER";
         when November  => return "NOVEMBER";
         when December  => return "DECEMBER";
      end case;
   end Months_Image;

begin
   Put_Line ("Month: "
             & Months_Image (M));
end Show_Enumeration_Image;

Here, the Months_Image function associates a string with each month of the Months enumeration. As expected, the compiler needs to store the strings used in the Months_Image function when compiling this code. Similarly, the compiler needs to store strings for the Months enumeration for the Image attribute.

Sometimes, we don't need to call the Image attribute for a type. In this case, we could save some storage by eliminating the strings associated with the type. Here, we can use the Discard_Names aspect to request the compiler to reduce — as much as possible — the amount of storage used for storing names for this type. Let's see an example:





procedure Show_Discard_Names is
   pragma Warnings (Off, "is not referenced");

   type Months is
     (January, February, March, April,
      May, June, July, August, September,
      October, November, December)
     with Discard_Names;

   M : constant Months := January;
begin
   null;
end Show_Discard_Names;

In this example, the compiler attempts to not store strings associated with the Months type duration compilation.

Note that the Discard_Names aspect is available for enumerations, exceptions, and tagged types.

In the GNAT toolchain

If we add this statement to the Show_Discard_Names procedure above:

Put_Line ("Month: "
          & Months'Image (M));

we see that the application displays "0" instead of "JANUARY". This is because GNAT doesn't store the strings associated with the Months type when we use the Discard_Names aspect for the Months type. (Therefore, the Months'Image attribute doesn't have that information.) Instead, the compiler uses the integer value of the enumeration, so that Months'Image returns the corresponding string for this integer value.

In the Ada Reference Manual
