4. Compliance with DO-178C/ED-12C Guidance: Analysis
4.1. Overview
DO ‑ 178C/ED ‑ 12C uses the term "requirement" to identify the expected behavior of the system, the software, or a part thereof. The desired functions are formulated at the system level as "system requirements" and are refined and elaborated into "software requirements". DO ‑ 178C/ED ‑ 12C identifies several categories of software requirements.
The High-Level Requirements (HLR) define the expected behavior of the complete software loaded on the target computer, independent of the software architecture. The HLR are further refined into one or more lower levels, specifying the expected behavior of each software subpart (component) based on the architecture definition. The lowest level of requirements (the LLR) and the architecture are translated into source code, which finally is compiled to produce the Executable Object Code (EOC).
Within this basic framework, the development process activities (requirements definition, design, coding, and integration) should be conducted so as to reduce the likelihood of introducing errors. Verification process activities are designed to detect errors through multiple filters, by assessing the same artifacts in different ways. This naturally applies to the EOC, whose verification involves checking compliance with the requirements at each level, using both normal and abnormal inputs. Such verification comprises manual reviews, automated analyses (possibly including the use of formal methods), and testing based on the software requirements. Finally, the EOC verification must itself be verified.
While it is not a DO ‑ 178C/ED ‑ 12C concept, a V cycle is often used to represent the complete software life cycle. A variation of the traditional V cycle, oriented around the DO ‑ 178C/ED ‑ 12C processes, was shown earlier in Fig. 1. As is seen in that figure, AdaCore tools mostly apply towards the bottom stages of the V cycle:
Design (architecture + LLR), coding and integration (EOC generation), for the development activities.
Design and source code review / analysis and LLR testing, for the verification activities.
Additional support is provided for design activities in conjunction with two technology supplements (Object-Oriented Technology and Formal Methods).
Language development environments provide the foundation for AdaCore's toolchains, including support for Ada, C, C++, and Rust. Complementary tools support several verification activities for Ada:
GNATstack for stack checking (which also supports C),
the GNAT Static Analysis Suite, or GNAT SAS, for defect and vulnerability detection, code standard checking (GNATcheck), and code metrics generation (GNATmetric)
the GNAT Dynamic Analysis Suite, or GNAT DAS, for testing (GNATtest, TGen), structural code coverage analysis (GNATcoverage, which also supports C and C++), processor emulation (GNATemulator), and fuzzing (GNATfuzz).
To show how AdaCore tools can be used in connection with the software life cycle processes for a system that is to be assessed against DO ‑ 178C/ED ‑ 12C, several possible scenarios will be described:
- Use Case 1: Traditional development process, excluding or including
OOT The development process produces requirements specified in text (natural language) that are implemented in Ada source code. A code standard defines a set of restrictions, which may or may not include limitations on object-oriented features. Both cases need to be considered:
Use Case 1a: No use is made of object oriented technology or related techniques
Use Case 1b: Ada's OOT features are used, and the guidance in DO ‑ 332/ED ‑ 217 is considered
- Use Case 2: Using SPARK and Formal Methods
The development uses a formal description of the low-level requirements, namely SPARK / Ada 2012 contracts. A formal analysis is performed, and credit is claimed on reducing the testing. The certification effort follows the additional guidance from the Formal Methods Supplement (DO ‑ 333/ED ‑ 216).
In the tables that appear in this chapter, the references shown in parentheses for the objectives identify the table, objective number, and paragraph reference for the objective in the DO ‑ 178C/ED ‑ 12C standard or the relevant technology supplement. For example, A-2[6]: 5.3.1.a refers to Table A-2, Objective 6, paragraph 5.3.1a.
4.2. Use case #1a: Coding with Ada 2012
The adoption of Ada as the coding language brings a number of benefits during design, coding, and testing, both from language features (as summarized in the table below) and from the AdaCore ecosystem.
4.2.1. Benefits of the Ada language
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Ada's most significant contribution is towards the reliability of the written code; the language is designed to promote readability and maintainability, and to detect errors early in the software development process. This section will summarize several Ada features that help meet these goals.
4.2.1.1. Modularization
Ada's package facility was designed for programming in the large: designing a system comprising millions of lines of code through modules (packages) that maximize reuse while making explicit the allowed inter-module dependencies. Ada directly supports the software engineering principle of information hiding, with a package comprising an interface (its specification) and an implementation (its body). A package specification itself is separated into a visible part that is accessible externally, and optionally a private part that can only be accessed by the associated package body and by the private parts and bodies of child packages. Packages support programming by composition (bottom-up design), programming by decomposition (top-down design), and programming by extension (Object-Oriented Programming).
Packages make clear syntactically, and enforce with compile-time
checks, the ways in which one module can depend on another; in
DO ‑ 178C/ED ‑ 12C terms, their coupling. They thus help meet the DO ‑ 178C/ED ‑ 12C
objective A-7[8] of achieving test coverage of the system's control
and data coupling. For example, if a compilation unit Q has a
with dependence on package P, then Q has a
potential data coupling on any data item defined in the visible part
of the specification for P, and likewise a potential control
coupling on any subprogram defined in the visible part of the
specification for P. These couplings are actualized if Q
references these items, and they must be demonstrated by structural
code coverage tests. On the other hand, data items or subprograms
defined in P's private part or package body are inaccessible to
Q (any such accesses would be flagged as compile-time errors),
and thus they do not constitute a coupling for Q. For further
details, see
Data and control coupling coverage with GNATcoverage.
4.2.1.2. Strong typing
The emphasis on early error detection and program clarity is perhaps most clearly illustrated in the language's strong typing. A type in Ada is a semantic entity that can embody static (and possibly also dynamic) constraints. For example:
type Ratio is digits 16 range -1.0 .. 1.0;
In the above example, Ratio is a floating-point type. Two
constraints are specified:
digitsspecifies the minimum precision needed for objects of this type, in terms of decimal digits. Here the compiler will likely choose a 64-bit representation. If the target architecture only supports 32-bit floating-point, the compiler will reject the program.rangedefines the set of acceptable values. Here, only values between-1.0and1.0(inclusive) are acceptable; an attempt to assign a value outside this range to a variable of typeRatiowill raise theConstraint_Errorrun-time exception.
Strong typing means an absence of implicit conversions (implicit casts), since such conversions can mask logical errors. For example:
type Miles is digits 16;
type Kilometers is digits 16;
...
Distance_1 : Miles;
Distance_2 : Kilometers;
...
Distance_1 := Distance_2; -- Illegal, rejected at compile time
Both Miles and Kilometers are 16-digit floating-point
types (the range constraint is optional in a floating-point type
declaration) but they are different types, and thus the assignment is
illegal. Likewise, it is illegal to combine Miles and
Kilometers in an expression; Miles + Kilometers would
also be rejected by the compiler.
With strong typing the program's data can be partitioned so that an object of a given type can only be processed using operations that make sense for that type. This helps prevent data mismatch errors.
Explicit conversions between related types are allowed, either predefined (for example between any two numeric types) or supplied by the programmer. Explicit conversions make the programmer's intent clear. For example:
type Grade is range 0..100; -- a new integer type
Test_Grade : Grade;
N : Integer; -- predefined type
...
Test_Grade := N;
-- Illegal (type mismatch), rejected at compile time
Test_Grade := Grade (N);
-- Legal, with run-time constraint check that N is in 0..100
4.2.1.3. Dimensionality checking
One of the challenges to a language's type model is the enforcement of the proper use of units of measurement. For example dividing a distance by a time should be allowed, yielding a velocity. But the error of dividing a time by a distance where a velocity value is required should be detected and reported as an error at compile time.
Although this issue could be addressed in theory by defining a separate type for each unit of measurement, such an approach would require defining functions (likely as overloaded operator symbols) for the permitted operand combinations. This would be notationally cumbersome and probably not used much in practice.
The GNAT Pro environment provides a solution through the
implementation-defined aspects Dimension_System which can be
applied to a type, and Dimension which can be applied to a
subtype. Uses of variables are checked at compile time for consistency
based on the Dimension aspect of their subtypes. The GNAT
library includes a package System.Dim.Mks that defines a type
and its associated subtypes that will be used for meters
(Length), kilograms (Mass), seconds (Time), and
other units. The programmer can define a subtype such as
Velocity that corresponds to Length (in meters) divided
by Time (in seconds):
subtype Velocity is Mks_Type with
Dimension => ("m/sec",
Meter => 1,
-- Values are exponents in the product of
-- the units
Second => -1,
others => 0);
With such a declaration the following is permitted:
My_Distance : Length := 10 * m; -- m is 1.0 meter
My_Time : Time := 5.0 * h; -- h is 1.0 hour
-- (3600.0 sec)
My_Velocity : Velocity := My_Distance / My_Time; -- OK
A Velocity value should be computed as a distance divided by a
time. The following will be detected as an error:
My_Distance : Length := 10 * m;
My_Time : Time := 5.0 * h;
My_Velocity : Velocity := My_Time / My_Distance; -- Illegal
GNAT Pro's support for dimensionality checking is a useful adjunct to Ada's strong typing facilities.
4.2.1.4. Pointers
For compliance with DO ‑ 178C/ED ‑ 12C, the use of dynamic memory (and pointers) should be kept to the bare minimum, and Ada helps support this goal. Features such as arrays or by-reference parameter passing, which require pointers or explicit references in other languages, are captured by specific facilities in Ada. For example, Ada's parameter passing mechanism reflects the direction of data flow (in, out, or in out) rather than the implementation technique. Some data types always require by-copy (for example scalars), and some types always require by-reference (for example tagged types, in OOP). For all other types the compiler will choose whether it is more efficient to use by-reference (via a hidden pointer or reference) or by-copy. Since the developer does not have to explicitly manipulate pointers to obtain by-reference passing, many common errors are avoided. Here's an example:
type Rec is
record
A, B : Integer;
end record;
My_Rec : Rec;
procedure Update (R : in out Rec);
...
Update (My_Rec);
The above procedure takes a Rec object as an in out
parameter. In the invocation Update (My_Rec), the compiler may
choose to pass My_Rec either by reference or by copy based on
efficiency considerations. Other languages use pointers, either
explicitly or implicitly, to obtain by-reference passing if the actual
parameter needs to be modified by the called subprogram.
When pointers are absolutely required, Ada's approach is to supply a type-safe and high-level mechanism (known as access types) to obtain the needed functionality while also providing low-level facilities that are potentially unsafe but whose usage is always explicitly indicated in the source text (thus alerting the human reader).
One example is the use of the generic procedure
Ada.Unchecked_Deallocation to free the storage for an object
that is no longer needed:
with Ada.Unchecked_Deallocation;
procedure Proc is
type String_Ptr is access String;
procedure Free is new Ada.Unchecked_Deallocation (String, String_Ref);
-- procedure Free (X : in out String_Ref);
Ptr : String_Ptr;
begin
...
Ptr := new String' ("Hello");
-- Allocates a String, initialized to "Hello"
...
Free (Ptr);
-- Deallocates heap object, sets Ptr to null
...
end Proc;
An object of type String_Ptr is a value that is either
null or else points to a dynamically allocated String
object. To deallocate an allocated object, it is necessary to
instantiate the generic procedure Ada.Unchecked_Deallocation;
the result is the definition of procedure Free. The sample
code allocates an initialized heap object and subsequently frees its
storage
As another example, here's a C code fragment that performs pointer arithmetic:
int *ptr = malloc (sizeof (int));
ptr++;
This may or may not be safe; after the increment, ptr points to a
location immediately beyond the storage for the allocated int.
As part of its C interfacing facilities Ada supports such pointer arithmetic, indeed with algorithmic code that is similar to the C notation, but the dependence on a potentially unsafe operation is explicit:
with Interfaces.C.Pointers;
procedure Pointer_Arith is
type Int_Array is
array (Positive range <>) of aliased Integer;
package P is
new Interfaces.C.Pointers(Positive, Integer,
Int_Array, Integer'First);
-- This generic instantiation defines the access type
-- Pointer and its associated operations
use type P.Pointer;
-- For notational convenience in invoking "+"
Ref : P.Pointer := new Integer;
begin
Ref := Ref+1;
-- Increments Ref by the size (number of storage elements)
-- of an Integer
end Pointer_Arith;
This syntax, though wordier than the C version, makes potentially unsafe operations much more visible, hence easier to identify and review.
4.2.1.5. Arrays
The array (an indexable sequence of elements) is a fundamental and efficient data structuring mechanism, but a major vulnerability unless attempted accesses to data outside the bounds of the array are prevented. Ada avoids this vulnerability since array operations such as indexing are checked to ensure that they are within the specified bounds. In addition to indexing, Ada provides various array operations (assignment, comparison, slicing, catenation, etc.) which allow manipulating arrays in an explicit and safe manner.
Ada's arrays are fixed size; once an array object is created, its bounds are established and cannot change. This simplifies the storage management (arrays in Ada can go on the stack and do not require hidden pointers). Additional flexibility (for example bounded-size arrays whose length can vary up to a specified maximum limit, or unbounded arrays of arbitrary length) is obtained through the Ada predefined library.
Here's an example:
type Int_Array is array(Positive range <>) of Integer;
-- Different objects of type Int_Array can have different
-- bounds
A : Int_Array (1 .. 8);
B : Int_Array (2 .. 12);
I : Integer;
...
A := (others => 0);
B := (2 .. 7 => 0, others => 1);
...
if A (1 .. 3) = B (6 .. 8) then
Put_Line ("Slices are equal");
end if;
Get (I); -- Read in an integer
A (I) := 100; -- Run-time check that I is in range
The above code creates two arrays, A with 8 elements indexed
from 1 to 8, and B with 11 elements indexed from 2
to 12. A is assigned all zeroes, and B is assigned 0 in
its first 6 elements and 1 in the rest. Contiguous sequences (slices)
of the two arrays are compared for equality. All of this is done
through standard language syntax as opposed to explicit loops or
library calls.
The code at the end of the example illustrates Ada's index
checking. If I is not in the index range of array A
(i.e., between 1 and 8 inclusive) then a run-time exception
(Constraint_Error) is raised.
4.2.1.6. Other Ada features
Many other features contribute to Ada's support for reliable and maintainable embedded software. Some were described briefly in Language Overview. Others include the Ravenscar profile, a deterministic tasking subset that is simple enough for certification but rich enough to program real-time embedded systems; and Ada's low-level facilities, which allow the programmer to specify target-specific representations for data types (including the bit layout of fields in a record, and the values for enumeration elements). Further information on features that contribute to safe software may be found in [BB15].
In summary, Ada's benefits stem from its expressive power, allowing the developer to specify the needed functionality or to constrain the feature usage to a deterministic subset, together with its support for reliability and readability. A variety of errors, including some of the most frequent and harmful vulnerabilities, are detected in Ada either at compilation time or through dynamic checks automatically added by the compiler. Such checks can be either retained (for example during a testing campaign) or removed (for example at production time, after verification has provided confidence that they are not needed).
Additional Ada features will be described and highlighted in other sections of this document.
4.2.2. Using Ada during the design process
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
An application's design — that is its low-level requirements and software architecture — may be specified in many ways, combining text and graphics at various levels of formality. The main principle is to keep the design at a higher level of abstraction than the code: in particular avoiding expression of requirements as code or pseudo-code. Requirements are properties to be verified by the code and are not the code itself. Thus the general advice is to avoid using a programming language as the medium for expressing — even in part — the software design.
Ada, however, presents an exception to this advice. The language provides extensive facilities for capturing a program unit's specification (its what) separately from the implementation (its how). An Ada package and an Ada subprogram each consists of a specification (the interface) and a body (the implementation) and a similar separation of interface from implementation is found in generic units, tasks, and encapsulated types.
A unit's specification establishes the constraints on its usage, that is, the permitted relationships between that unit and other parts of the program. These are the unit's architectural properties, in contrast to its implementation. It thus makes sense for a significant part of the Ada specifications to be developed during the design process. An interesting effect is that the design elements defined as Ada specifications are easy to verify, sometimes simply by compiling the code and showing that the interface usages are correct.
The separation of specification and implementation means that an Ada specification can have an implementation written in a different language, for example C. Although this may lose some of Ada's benefits, it illustrates the flexibility and relevance of the approach.
4.2.2.1. Component identification
Regardless of the method used for designing the software as a hierarchical set of components, Ada may be directly used to identify the software components and define their interfaces. This is typically done via package specifications and subprogram specifications.
A few comments on the term interface may be helpful. (It is not referring to the OOP language feature here.) Informally, a component's interface is the collection of its properties that establish whether any given usage of the component is correct. These properties arise at several levels. As an example, for a procedure that sorts an array of floating point values its interface may be regarded as comprising the following:
Syntactic interface: the procedure's name and its formal parameters (their names, parameter passing modes, and types).
Information flow interface: how, if at all, non-local data are accessed by the procedure (read, written, or both)
Semantic (functional) interface: the function performed by the procedure — what does it mean to sort an array, independent of the algorithm — which is a low-level requirement for the procedure
Other low-level constraints may also be considered as part of the interface, such as a time or space constraint.
The syntactic interface in Ada is a simple subprogram specification:
type Float_Array is array (Integer range <>) of Float;
procedure Sort (My_Array : in out Float_Array);
This will also suffice for information flow if Sort does not access non-local data. If Sort does access non-local data then the uses can be specified informally by comments:
type Float_Array is array (Positive range <>) of Float;
procedure Sort (My_Array : in out Float_Array);
-- Inputs: None
-- Outputs
-- p_GLOBAL.Status : p_GLOBAL.T_Status;
They can also be captured more formally as aspects of the procedure specification (an aspect is a technical feature that specifies a property of program entity) if the SPARK subset of Ada is used, as will be explained below.
The LLR (including the semantic interface) are developed in parallel and may be specified separately from or together with the component's specification. They can be defined in natural language, as comments, or using contracts (pre- and/or postconditions) as illustrated in the next subsection.
4.2.2.2. Low-Level Requirements
A simple example of a low-level requirement, for the Sort
procedure defined above, is the following:
The component shall order the array from the smallest value to highest one
In Ada, we can capture this requirement as a postcondition aspect of the procedure:
type Some_Array is array (Positive range <>) of Integer;
procedure Sort (My_Array : in out Some_Array)
with Post =>
(for all I in My_Array'First .. My_Array'Last-1 =>
My_Array (I) <= My_Array (I+1) );
The with Post construct defines a postcondition for the
procedure; i.e., a condition that is asserted to be True when the
procedure returns. Here it expresses, in Ada syntax, the low-level
requirement that the procedure sort the array in ascending order: for
each index I into the array, from the first position through
the next-to-last, the value of the element at position I+1 is
at least as large as the element at position I. In the
degenerate case where the array is either empty or contains a single
element (i.e., when the range of I is empty) the for all
condition is considered to be True.
It's clear that the postcondition expression says nothing about how
the procedure is implemented. It's not pseudo-code for an algorithm
but rather a property of the procedure that will need to be
verified. It's the formalization of a requirement that happens to use
Ada syntax. Moreover, a postcondition can refer to the values of
formal parameters and/or global data, both at the point of call and
the point of return. (In the above example, the postcondition could be
strengthened by specifying that the value of My_Array on return
is a permutation, possibly the identity mapping, of the value on
entry.) And a function postcondition can refer to the value being
returned by the function.
A subprogram can also have a precondition (a Boolean expression),
which is a requirement that the caller needs to satisfy and that is
assumed to be True by the called subprogram. For example, a function
that returns the maximum value in an array of integers should have a
precondition that the array is non-empty. The postcondition that is
shown reflects the two properties that need to be met:
The function result is at least as large as each element in the array, and
The function result is present in the array
type Some_Array is array (Positive range <>) of Integer;
function Maximum (My_Array : in Some_Array) return Integer
with Pre => My_Array'Length > 0,
Post =>
(for all I in My_Array'Range =>
Maximum'Result >= My_Array (I)) and
(for some I in My_Array'Range =>
Maximum'Result = My_Array (I));
Preconditions and postconditions, and related features such as type invariants, are referred to collectively as contract-based programming and were introduced in the Ada 2012 version of the language. Based on the assertion policy (as specified by a pragma), the contracts can be checked at run-time, raising an exception on failure. They also support (but do not require) formal analysis, since the Ada syntax is the same as is used in SPARK. In SPARK the contracts are subject to additional restrictions (for example they must conform to the SPARK language subset). The contracts are then considered to be low-level requirements and verification cases at the same time, used by the SPARK proof technology for formal verification, for example to demonstrate that if a subprogram satisfies its precondition then on return it will satisfy its postcondition. In summary, functional contracts (such as pre- and postconditions) serve three purposes:
As conditions to be formally proved by SPARK technology,
As run-time conditions to be evaluated/checked using standard Ada semantics, and
As requirements documentation to the human reader (if checks are not enabled and formal methods are not used) in an unambiguous notation (i.e., using Ada syntax rather than natural language)
When used for defining the software's architecture, Ada specifications can obviously express concepts such as modules (packages), groups of modules (package hierarchies), subprograms, class inheritance hierarchies, etc. Additional interface properties can be expressed using SPARK aspects, for example a subprogram's data and flow dependencies. Here's an example which, for simplicity and purposes of illustration, uses visible variables in a package specification to represent a data structure for a last-in first-out stack:
package Stack_Pkg is
Max_Length : constant := 100;
subtype Element_Type is Integer;
Length : Natural range 0.. Max_Length := 0;
Stack : array (1..Max_Length) of Element_Type);
procedure Push ( Item : in Element_Type )
with Global => (In_Out => (Length, Stack)),
Depends => (Length => Length,
Stack => (Stack, Length, Item)),
Pre => Length < Max_Length,
Post => Length = Length'Old+1;
...
end Stack_Pkg;
The Global aspect captures the data dependency: Push
will reference and assign to the global variables Length and
Stack. The Depends aspect captures the flow dependency:
the new value of Length depends on its old value, and the new
value of Stack depends on the values of Stack,
Length, and Item. These dependencies can be verified by
the SPARK tools (assuming that the subprogram body is written in the
SPARK subset). The pre- and postconditions reflect some of the
functional properties of the procedure, and the postcondition
illustrates the 'Old attribute for referencing the
point-of-call value of a variable.
A more realistic version of this example would hide the representation in the private part or body of the package. The contracts would then be expressed differently, for example with the Global and Depends referring to the abstract state of the package rather than visible variables.
Some low-level requirements might not be expressible using the aspect mechanism (for example timing constraints). A convenient approach during architecture definition is to separately specify those components whose requirements can be defined using contracts, from those that cannot.
4.2.2.3. Implementation of Hardware / Software Interfaces
Ada's type system makes it straightforward to implement hardware/software interfaces, while also detecting target incompatibilities at compile time. Such interfaces may be defined as part of the coding process, but performing this activity during the design process has a number of benefits. It may avoid duplication of effort and also helps prevent errors from being introduced during the translation from design to code. It also allows early error detection through compilation checks.
4.2.2.3.1. Package Interfaces
Applications sometimes need to use types that correspond exactly to
the native numeric data representations supported on the target
machine, for example 16- or 32-bit signed and unsigned integers. Such
types are defined in package Interfaces, which is part of the
standard Ada library. The exact set of types depends on the target but
typically includes integer types such as Unsigned_16,
Unsigned_32, Integer_16, and Integer_32, as well
as several floating-point types. The unsigned integer types are
especially useful for hardware / software interfacing since they
support bitwise operations including shift and rotate functions.
4.2.2.3.2. Specifying data representation
Embedded systems often need to deal with external data having a specific representation, and Ada has a variety of features to help meet this requirement. For example, the following can be defined:
the values of the elements in an enumeration type,
the layout of a record (size and position of each field, possibly with fields overlaid), and
the address, size, and/or alignment of a data object.
The compiler will check that the specified representation is
consistent with the target hardware. For example,

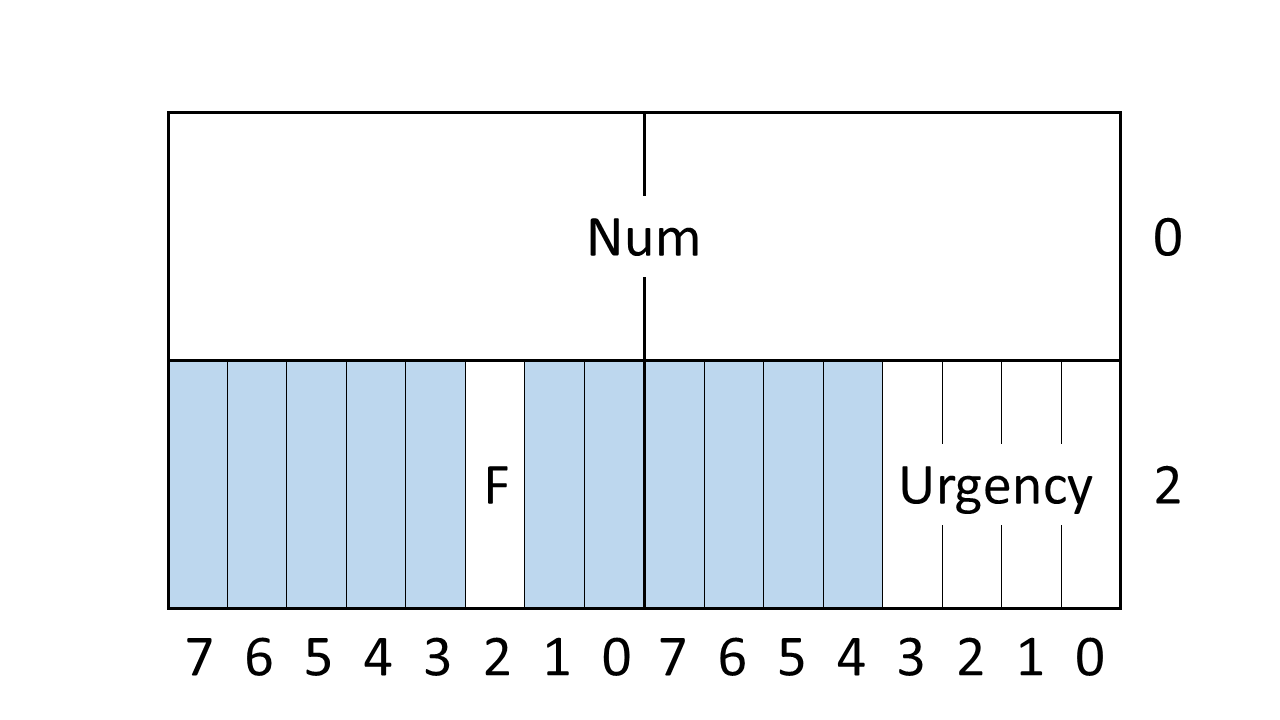

Fig. 3 shows the required layout (on a
little-endian machine) for a data object consisting of an unsigned
16-bit integer (Num), a 4-bit enumeration value
(Urgency) that is either Low, Medium, or
High, with the respective values 2, 5, and 10), and a Boolean
flag (F).
Fig. 3 Data Layout
As with other entities, Ada separates the type's interface (its
logical structure as a record type with named fields) from its
implementation (its physical representation / layout including size,
alignment, and exact position of each field). The representation can
be specified through a combination of aspects and representation
clauses. Defining the Bit_Order and the
Scalar_Storage_Order explicitly means that the code will work
correctly on both little-endian and big-endian hardware.
type Urgency_Type is (Low, Medium, High);
for Urgency_Type use (Low => 2, Medium => 5, High => 10);
for Urgency_Type'Size use 4; -- Number of bits
type Urgency_Type is (Low, Medium, High);
for Urgency_Type use (Low => 2, Medium => 5, High => 10);
for Urgency_Type'Size use 4; -- Number of bits
type Message is
record
Num : Interfaces.Unsigned_16;
Urgency : Urgency_Type;
F : Boolean;
end record
with
Bit_Order => System.Low_Order_First,
Scalar_Storage_Order => System.Low_Order_First,
-- Scalar_Storage_Order is a GNAT-specifc aspect
Size => 32, -- Bits
Alignment => 4; -- Storage units
for Message use -- Representation clause
record
Num at 0 range 0..15;
Urgency at 2 range 0..3;
F at 3 range 2..2;
end record;
The at syntax in the record representation clause specifies the
offset (in storage units) to the storage unit where the field begins,
and the bit positions that are occupied. A field can overlap multiple
storage units.
When the program specifies these kinds of representational details,
it's typical for the application to read a raw value from an
external source, and in such cases it is important to ensure that such
data values are valid. In the above example, the Urgency field
needs to have one of the values 2, 5, or 10. Any other value has to be
detected by the program logic, and Ada's 'Valid attribute can
perform that check. The following example illustrates a typical style:
M : Message;
...
Device.Read (M); -- Reads a value into M
if not M.Urgency'Valid then
... -- Report non-valid input value
else
... -- Normal processing
end if;
The 'Valid attribute can be applied to data objects from
numeric and enumeration types. It is useful when the permitted values
for the object are a proper subset of the full value set supported by
the object's representation.
4.2.2.3.3. Numeric types
Another feature related to hardware/software interfaces is Ada's numeric type facility (integer, floating-point, fixed-point). The programmer can specify the type's essential properties, such as range and precision, in a machine-independent fashion; these will be mapped to an efficient data representation, with any incompatibilities detected at compile time. As an example:
type Nanoseconds is range 0 .. 20_000_000_000;
V : Nanoseconds;
The above code requires integers up to 20 billion to be represented. This would only be accepted on a 64-bit machine, and the compiler would reject the program if the target lacks such support. This can even be made explicit as part of the type declaration:
type Nanoseconds is range 0 .. 20_000_000_000
with Size => 64;
V : Nanoseconds;
The compiler will check that 64 bits are sufficient, and that it can be implemented on the target computer.
Similar constraints can be expressed for floating-point types:
type Temperature is digits 14;
V : Temperature;
At least 14 digits of decimal precision are required in the
representation of Temperature values. The program would be accepted if
the target has a 64-bit floating point unit, and would be rejected
otherwise.
4.2.3. Integration of C components with Ada
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
C is widely used for embedded development, including safety-critical systems. Even where Ada is the main language for a system, components written in C are very commonly included, either from legacy libraries or third party software. (Languages such as Java and C++ are used much less frequently. This is due in part to their semantic complexity and the difficulty of demonstrating compliance with certification standards, for example for the C++ standard library or the Java Garbage Collector.)
Friendly cooperation between Ada and C is supported in several ways by AdaCore tools and the Ada language.
Most of the tools provided by AdaCore (compiler, debugger, development environments, etc.) can support systems written entirely in Ada, in a mixture of Ada and C, and entirely in C.
Specific interfacing tools are available to automatically generate bindings between Ada and C, either creating Ada specification from a C header file:
$ g++ -fdump-ada-spec
or a C header file from an Ada specification:
$ gcc -gnatceg
These binding generators make it straightforward to integrate C components in an Ada application or vice versa.
The Ada language directly supports interfacing Ada with other languages, most notably C (and also Fortran and COBOL). One of the standard libraries is a package
Interfaces.Cthat defines Ada types corresponding to the C basic types (int,char, etc.) and implementation advice in the Ada Language Reference Manual explains how to import C functions and global data to be used in Ada code, and in the other direction, how to export Ada subprograms and global data so that they can be used in C.The GNAT Pro compiler uses the same back end technology for both Ada and C, facilitating interoperability.
A project using a C codebase can incrementally introduce Ada or SPARK. Ada has standard support for interfacing with C, SPARK can be combined with C (with checks at the interfaces) [KOC16], and AdaCore's GNAT Pro Common Code Generator compiles a SPARK-like subset of Ada into C (for use on processors lacking an Ada compiler). C projects can thus progressively adopt higher-tier languages without losing the investment made in existing components.
4.2.4. Robustness / defensive programming
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Robustness means ensuring correct software behavior in the presence of abnormal input, and (as per DO ‑ 178C/ED ‑ 12C) such behavior should be defined in the software requirements. There is no fundamental difference between requirements concerning abnormal input (robustness requirements) and those concerning normal input (functional requirements).
One approach to meeting robustness requirements is through defensive programming techniques; that is, code that detects incorrect input and performs the appropriate actions. However, this has two undesirable side effects.
"Correct behavior in case of incorrect input" is sometimes difficult to define, resulting in code that cannot be verified by requirements based tests. Additional test cases based on the code itself (called structural testing) are not acceptable from a DO ‑ 178C/ED ‑ 12C perspective, since they are not appropriate for revealing errors.
Unexercised defensive code complicates structural coverage analysis. It can't be classified as extraneous (since it does meet a requirement), but neither can it be considered as deactivated (since it is intended to be executed when the input is abnormal). As with any other non-exercised code, justification should be provided for defensive code, and this may entail difficult discussions with certification authorities.
An alternative approach is to ensure that no invalid input is ever supplied (in other words, to make each caller responsible for ensuring that the input is valid, rather than having the callee deal with potential violations). This can be done through the use of Ada 2012 contracts. Here's an example, a procedure that interchanges two elements in an array:
type Float_Array is array (1..100) of Float;
procedure Swap (FA : in out Float_Array;
I1, I2 : in Integer);
-- I1 and I2 have to be indices into the array,
-- i.e., in FA'Range
procedure Swap (FA : in out Float_Array;
I1, I2 : in Integer) is
Temp : Float;
begin
if I1 in FA'Range and then I2 in FA'Range then
Temp := FA (I1);
FA (I1) := FA (I2);
FA (I2) := Temp;
end if;
end Swap;
The above example illustrates the ambiguity of the requirements for
defensive code. What does it mean to invoke Swap when one or
both indices are out of range? Not doing anything (which is the effect
of the above code) is a possible answer, but this should be identified
as a derived requirement (since it is an additional behavior of the
component). Other possibilities:
Raise an exception
Report the error through an additional
outparameter to the procedure, or as a status value returned (if the subprogram were expressed as a function rather than a procedure)Map an out-of-bounds low value to
FA'First, and an out-of-bounds high value toFA'Last
Even if one of these options is chosen as the required behavior, there are both efficiency questions (why should the procedure spend execution time checking for a condition that is expected to be met) and methodological issues with such defensive code.
The responsibility should really be on the caller to avoid invoking the procedure if any of the actual parameters has an incorrect value. A comment in the code states that the indices should be in range, but Ada 2012 allows formalizing this comment in an automatically verifiable way:
type Float_Array is array (Positive range <>) of Float;
procedure Swap (FA : in out Float_Array; I1, I2 : Integer)
with Pre => I1 in FA'Range and then I2 in FA'Range
procedure Swap (FA : in out Float_Array; I1, I2 : Integer) is
Temp : Float;
begin
Temp := FA (I1);
FA (I1) := FA (I2);
FA (I2) := Temp;
end Swap;
The comment has been replaced by a precondition, which is part of the procedure specification. Assuming proper verification at each call site, defensive code in the implementation of the procedure is not needed. The requirement is now to check that the values passed at each call meet the precondition, and to take appropriate action if not. This action may differ from call to call, and may involve further preconditions to be defined higher up in the call chain.
Enforcement of these preconditions may be accomplished through several possible activities:
Code reviews using the Ada contracts as constraints. This is the least formal technique, but the explicit specification of the preconditions in Ada contract syntax (versus comments) helps improve the thoroughness of the review and avoids the potential ambiguity of requirements expressed in natural language.
Enabling dynamic checks during testing, and removing them in the final executable object code. Run-time checks are generated for pre- and postconditions if the program specifies
pragma Assertion_Policy (Check)and the code is compiled with the compiler switch-gnata. A violation of a pre- or postcondition will then raise theAssertion_Errorexception. After testing and related verification activities achieve sufficient assurance that no violations will occur, the checking code can be removed (either bypragma Asserion_Policy(Ignore)or by compiling without-gnata).Enabling dynamic checks during testing, and keeping them in the final executable object code. In this case, the software requirements should define the expected behavior in case a pre- or postcondition is violated, for example to reset the application to a known safe state as soon as an inconsistency is detected.
Static analysis or formal proof. The GNAT Static Analysis Suite technology) takes preconditions into account as part of its analysis in detecting potential errors. It can be tuned based on whether the priority is on finding as many errors as possible, at the expense of false positives, or on "picking the low-hanging fruit": detecting defects but minimizing the false positives at the expense of missing some actual errors. The SPARK tools likewise use preconditions, in this case to guide formal analysis. The proof engine can statically verify (or else report otherwise) that (1) a precondition is strong enough to guarantee the absence of run-time errors in the subprogram, and (2) every call satisfies the precondition. The SPARK analysis is sound (no false negatives): if the proof succeeds, then there is no violation of the properties that SPARK checks for.
The methods and activities adopted to address the robustness issue should be described in the software plans and, when applicable, in the software development standards (requirements and/or code standards).
Note that pre- or postcondition contracts do not in themselves implement robustness requirements. Instead they help to formalize and verify such requirements (through static analysis, formal proof, and/or testing). The defensive code is the code that is developed, if any, to make sure that these contracts are respected.
4.2.5. Defining and Verifying a Code Standard with GNATcheck
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Defining a Software Code Standard serves at least two purposes:
It helps to make the application source code consistent, more verifiable, and more easily maintainable. While these qualities do not have a direct safety benefit, adherence to a code standard will improve the efficiency of the source code verification activities.
It can prevent the use of language features that complicate software product verification or introduce potential safety issues. A common example is the deallocation of dynamically allocated objects, which can lead to dangling references if used incorrectly. Verification that a program is not susceptible to such errors would require thorough and complex analysis, and as a result it's typical for a code standard to prohibit deallocation.
GNATcheck provides an extensive set of user-selectable rules to verify
compliance with various Ada coding standard requirements. These
includes style convention enforcement (casing, indentation, etc.),
detection of features that are susceptible to misuse (floating-point
equality, goto statements), static complexity checks (block
nesting, cyclomatic complexity) and detection of features with complex
run-time semantics (tasking, dynamic memory).
Since a code standard may include qualitative rules, or rules that are not handled by GNATcheck, verifying that the source code complies with the standard is not always fully automatable. However, there are two ways to extend automated verification:
GNATcheck's rules are extended on a regular basis in response to customer input, and the tool's enforcement of the new rules is eligible for qualification. Even in the absence of tool qualification, the tool can still save time during verification by detecting rule violations.
Users can define their own rules as well, in particular using LKQL (LangKit Query Language) for running queries on top of source code.
One issue that comes up with a code standard is how to apply it retrospectively to an existing code base. The first time a compliance checking tool is run, it would not be uncommon to find hundreds or even thousands of deviations. Fixing them all is not only a cumbersome and tedious task, but as a manual activity it's also a potential for introducing new errors into the code. As a result, it is often more practical to focus on those deviations that are directly linked to safety, rather than trying to update the entire application. Then for newly written code the compliance checker can verify that no new deviations are introduced. Deviation identification may be monitored (e.g. with SonarQube or SQUORE) and viewed with AdaCore's GNATdashboard tool. This approach can provide an analysis over time, for example showing the progress of removal of certain categories of deviations that were present in a given baseline.
Another practicality with code standards is that some rules might need
to admit deviations in specific contexts when justified (for example
the goto statement might be acceptable to implement state
transitions in code that simulates a finite-state machine, and
forbidden elsewhere). GNATcheck allows adding local check exemptions,
around a statement or a piece of code. Such exemptions and their
justification would then appear in the tool's report.
4.2.6. Checking source code accuracy and consistency with GNAT SAS
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
"Accuracy and consistency" is a rather broad objective in DO ‑ 178C/ED ‑ 12C, identifying a range of development errors that need to be prevented. Satisfying this objective requires a combination of reviews, analyses and tests, and tools may be used for some of these activities. The GNAT Static Analysis Suite (GNAT SAS) specifically targets issues that correspond to Ada exceptions, such as scalar overflow, range constraint violations, and array indexing errors. It also detects other errors including reads of uninitialized variables, useless assignments, and data corruption due to race conditions. The depth of the tool's analysis can be adjusted based on whether the priority is maximal error detection at the expense of false alarms, or minimal false alarms at the expense of undetected errors.
4.2.7. Checking worst case stack consumption with GNATstack
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Stack usage is one of the items listed in the "source code accuracy and consistency" objective; i.e., ensuring that the application has sufficient stack memory reserved during program execution. Verification is often achieved by running test cases and measuring the actual stack space used. This approach may provide a false sense of confidence, however, since there is no evidence that the worst case usage has been addressed.
A more precise analysis method is to statically determine the actual stack consumption, looking at the memory statically allocated by the compiler together with the stack usage implied by the subprogram call graphs. The GNATstack tool can perform this analysis for Ada and C, determining the maximum amount of memory needed for each task stack.
In many cases, however, not everything can be statically computed; examples are recursive calls, dynamically sized stack frames, and system calls. In such cases, the user can provide a worst-case estimate as input to GNATstack's computation.
4.2.8. Compiling with the GNAT Pro compiler
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The GNAT Pro technology includes GNU gcc-based Ada and C compilation toolsuites in wide use by developers of high assurance software, in particular in a DO ‑ 178C/ED ‑ 12C context. They are available on a broad range of platforms, both native and cross. Embedded targets include various RTOSes for certified applications (such as VxWorks 653, VxWorks 6 Cert, Lynx178, PikeOS) as well as bare metal configurations, for a wide range of processors (such as PowerPC and ARM).
The Ada language helps reduce the risk of introducing errors during software development (see [BKKF11]). This is achieved through a combination of specific programming constructs together with static and dynamic checks. As a result, Ada code standards tend to be shorter and simpler than C code standards, since many issues are taken care of by default. The GNAT Pro compiler and linker provide detailed error and warning diagnostics, making it easy to correct potential problems early in the development process.
As with all AdaCore tools, the list of known problems in the compiler is kept up to date and is available to all subscribers to the technology. A safety analysis of the list entries is also available, helping developers assess potential impact and decide on appropriate actions. Possible actions are code workarounds or a choice of a different set of compiler code generation options.
For certain Ada language features the GNAT Pro compiler may generate object code that is not directly traceable to source code. This non-traceable code can be verified using a traceability analysis (see Demonstrating traceability of source to object code).
4.2.9. Using GNATtest for low-level testing
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The software architecture is developed during the design process, identifying components and sometimes subcomponents. The behavior of each terminal component is defined through a set of low-level requirements. Typically, low-level testing consists in
Developing test cases from the low-level requirements,
Implementing the test cases into test procedures,
Exercising the test procedures separately on one or more components, and
Verifying the test results
GNATtest may be used to develop the test data. The general approach is for GNATtest to generate an Ada test harness around the component under test, leaving the tester to complete test skeletons based on the predefined test cases, with actual inputs and expected results. Since the test generation is carried out in a systematic way, it's very easy to identify where tests are missing (they will be reported as non-implemented).
The tool works iteratively. If it's called a second time on a set of files that have changed, it will identify the changes automatically, preserving existing tests and generating new tests for newly added subprograms.
A component under test may call external components. One possible approach is to integrate the components incrementally. This has the benefit of preserving the actual calls, but it may be difficult to accurately manage the component interfaces. Another approach is to replace some of the called subprograms with dummy versions (stubs). GNATtest supports both approaches, and can generate stub skeletons if needed.
The functionality just described is common to most test tools. A novel and useful feature of GNATtest is its ability to develop the test cases during the design process. (Note that independence between design and test cases is not required. Independence is required between code development and test case derivation, to satisfy the independence criteria of objectives A6-3 and 4 for software level A and B).
4.2.9.1. Approach 1: Test cases are not specified in Ada specifications
A traditional approach can be followed by GNATtest — that is to say, tests cases are described outside of the Ada specification, but linked to a particular function. When working this way, GNATtest will generate one test per subprogram; for example :
function Sqrt (X : Float) return Float;
This will generate one unique test procedure skeleton.
4.2.9.2. Approach 2: Test cases are developed during the design process
In this approach, Ada package specifications are considered as an output of the design process (see Using Ada during the design process). More than one test per subprogram may be developed. Here's a simple example:
function Sqrt (X : Float) return Float
with Pre => X >= 0.0,
Post => Sqrt'Result >= 0.0,
Test_Case =>
(Name => "test case 1",
Mode => Nominal,
Requires => X = 16.0,
Ensures => Sqrt'Result = 4.0),
Test_Case =>
(Name => "test case 2",
Mode => Robustness,
Requires => X < 0.0,
Ensures => raise Constraint_Error
with "Non-negative value needed");
As part of the specification for the Sqrt function, the GNAT-specific
aspect Test_Case is used to define two test cases. The one
named "test case 1" is identified as Nominal, which means that
the argument supplied as Requires should satisfy the function's
precondition, and the argument supplied as Ensures should
satisfy the function's postcondition. The test case named "test case
2" is specified as Robustness, so the pre- and postconditions
are ignored. As with all test cases, these are based on the function's
requirements.
When generating the test harness, GNATtest provides a skeleton of the
test procedures, and the user has to plug in the input values (from
the Requires argument) and the expected results (from the
Ensures argument) for all test cases defined in the Ada package
specification.
GNATtest will insert specific checks to verify that, within "test case
1", all calls made to Sqrt have X equal to 16.0,
and each value returned is equal to 4.0. This not only verifies that
the test succeeded, but also confirms that the test conducted is
indeed the intended test. As a result, GNATtest verifies that the test
procedures comply with the test cases, that they are complete (all
test cases have been implemented and exercised), and that the test
results are as expected.
In addition, the traceability between test case, test procedures and test results is direct, and does not require production of further trace data.
4.2.9.3. Approach 3: Test cases are developed separately from the design process
The two test cases developed in Approach 2 are not sufficient to fully
verify the Sqrt function. To comply with DO ‑ 178C/ED ‑ 12C Table A-6
Objectives 3 and 4, the activities presented in §6.4.2
(Requirements-Based Test Selection) for normal and robustness cases
are applicable. It is not generally practical to include all the test
cases in the Ada package specification.
Another consideration is the criterion of independence between code and test case development. Thus Approach 2 is applicable only if the Ada package specification is developed during the design process (and not during the coding process).
An alternative approach is to develop the test data separately from the Ada package specifications, while some test cases (effectively test case classes) are still defined and used by GNATtest to develop the test harness. Here's an example:
function Sqrt (X : Float) return Float
with Test_Case =>
(Name => "test case 1",
Mode => Nominal,
Requires => X > 0.0,
Ensures => Sqrt'Result > 0.0),
Test_Case =>
(Name => "test case 2",
Mode => Nominal,
Requires => X = 0.0,
Ensures => Sqrt'Result = 0.0),
Test_Case =>
(Name => "test case 3",
Mode => Robustness,
Requires => X < 0.0,
Ensures => raise Constraint_Error
with "Non-negative value needed");
In this approach, three Test_Case aspects are defined —
in effect test case classes that partition the set of possible input
values — defining the expected high-level characteristics of the
function. For each Test_Case, at least one actual test case
will be developed. In this example, at least three test cases need to
be defined, corresponding to an actual parameter that is positive,
zero, or negative, with the respective expected results of positive,
zero, and raising an exception.
As in Approach 2, the skeleton generated by GNATtest must be completed by the user, but in that case the data produced are the actual test cases (and cannot be considered as test procedures). For example, based on the range of the input, the user should define tests for boundary values, for the value 1, or any representative data (equivalence classes).
As previously, GNATtest will insert specific checks based on the
Requires and Ensures values for each
Test_Case. Then GNATtest will verify that at least one actual
test case has been implemented for each Test_Case, and that the
results are correct.
Note that in this approach, the test procedures become the internal files generated by GNATtest. Therefore, as it will be difficult to verify the correctness of these files, GNATtest qualification is needed in order to satisfy objective A7-1 "test procedures are correct".
4.2.10. Using GNATemulator for low-level and software / software integration tests
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
- As stated in DO ‑ 178C/ED ‑ 12C §6.4.1:
"More than one test environment may be needed to satisfy the objectives for software testing.... Certification credit may be given for testing done using a target computer emulator or a host computer simulator".
But an integrated target computer environment is still necessary to satisfy the verification objective (A6-5) that the executable object code is compatible with the target computer. These tests, referred to as "Hardware / Software integration tests", are necessary since some errors might only be detected in this environment. As stated in DO ‑ 330/ED ‑ 215, FAQ D.3, qualification of a target emulator or simulator may be required if they are used to execute the Hardware / Software integration tests.
Although GNATemulator might thus not be applicable in the scope of Hardware / Software integration tests, it is allowed for all other tests (see DO ‑ 330/ED ‑ 215 FAQ D.3). Two approaches may be used:
To perform some tests (that may be part of low-level testing and/or Software / Software integration testing) on GNATemulator, and to claim credit on this environment for satisfying the objectives concerning the Executable Object Code's compliance with its requirements
To use GNATemulator to prototype and gain confidence in tests prior to re-running the tests on the actual target computer environment.
In any event GNATemulator helps considerably in the early detection of errors in both the software and the test procedures. GNATemulator works in much the same fashion as a "Just In Time" (JIT) compiler: it analyzes the target instructions as it encounters them and translates them on the fly (if not done previously) into host instructions, for example an x86. This makes it particularly suitable for low-level testing, at least for those tests that do not depend on actual timing on the target.
GNATemulator also provides an easy way to interact with emulated devices and drivers on the host. Reads and writes to emulated memory can trigger interactions with such code, through the GNATbus interface.
4.2.11. Structural code coverage with GNATcoverage
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The structural coverage analysis objectives of DO ‑ 178C/ED ‑ 12C serve to verify the thoroughness of the requirements-based tests and to help detect unintended functionality. The scope of this analysis depends on the software Level:
Statement coverage for Level C,
Statement and Decision coverage for level B, and
Statement, Decision and Modified Condition / Decision Coverage (MC/DC) at level A.
These three criteria will be explained through a simple (and artificial) example, to determine whether a command should be issued to open the aircraft doors:
Closed_Doors : Integer;
Open_Ordered, Plane_Landed : Boolean;
...
if Closed_Doors > 0 and then Open_Ordered and then Plane_Landed then
Open_Doors;
end if;
Note: the Ada short-circuit form and then is equivalent to the
C shortcut boolean operator &&: the second operand is evaluated
if and only if the first operand evaluates to True. If the first
operand evaluates to False, then the expression's value is False.
This code fragment consists of two statements:
The enclosing
ifstatementThe enclosed
Open_Doors;statement, which will be executed if the decision in theifstatement isTrue
The if statement in turn contains a single decision:
Closed_Doors > 0 and then Open_Ordered and then Plane_Landed
and this decision contains three conditions:
Closed_Doors > 0Open_OrderedPlane_Landed
At the statement level, both statements need to be executed during
requirements-based tests. This criterion may be achieved with only one
test, with all three conditions True.
It's important to realize that this piece of code is the
implementation of one or several requirements, and a single test with
all three conditions True will almost certainly fail to satisfy the
requirement coverage criterion. Further, this single test is probably
not sufficient to detect implementation errors: the purpose of testing
is to detect errors and to show that the software satisifes its
requirements, not to achieve structural code coverage. Structural
coverage analysis is mainly a test completeness activity.
At the decision level, each decision must be exercised both with a
True and False outcome. In the example above, this may be
achieved with only two tests; one test with all three conditions True,
and a second test with at least one False.
The third level is called MC/DC, for Modified Condition / Decision Coverage. The goal is to assess that each condition within a decision has an impact, independently of other conditions, on the decision outcome.
The motivation for MC/DC is most easily appreciated if we first look at what would be required for full coverage of each possible combination of truth values for the constituent conditions. This would require eight tests, represented in the following table:
Closed_Doors > 0 |
Open_Ordered |
Plane_Landed |
Result |
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
In the general case, 2n cases would be needed for a decision with n conditions, and this would be impractical for all but small values of n. The MC/DC criterion is achieved by selecting combinations demonstrating that each condition contributes to the outcome of the decision.
With MC/DC, each condition in the decision must be exercised with both
True and False values, and each condition must be shown to
independently affect the result. That is, each condition must be
exercised by two tests, one with that condition True and the other
with the condition False, such that:
The result of the decision is different in the two tests, and
For each other condition, the condition is either
Truein both tests orFalsein both tests
Here the MC/DC criterion may be achieved with four tests: one test
with all three conditions True, and each other test changing the value
of one condition to False:
|
Closed_Doors > 0 |
Open_Ordered |
Plane_Landed |
Result |
|---|---|---|---|---|
Baseline |
|
|
|
|
Test 1 |
|
|
|
|
Test 2 |
|
|
|
|
Test 3 |
|
|
|
|
Each condition thus has two associated tests, the one marked as
baseline, and the one with False in that condition's
column. These two tests show how that condition independently affects
the outcome: The given condition is True in the baseline and False
in the other, each other condition has the same value in both tests, and
the outcome of the two tests is different.
In the general case, the MC/DC criterion for a decision with n conditions requires n+1 tests, instead of 2n. For more information about MC/DC, see [HVCR01].
GNATcoverage provides output that helps comply with DO ‑ 178C/ED ‑ 12C objectives for test coverage of software structure (Table 7, objectives 5, 6, and 7), for both Ada and C source code. The tool computes its results from trace files that show which program constructs have been exercised by a given test campaign. With source code instrumentation, the tool produces these files by executing an alternative version of the program, built from source code instrumented to populate coverage-related data structures. Through an option to GNATcoverage, the user can specify the granularity of the analysis by choosing any of the coverage criteria defined in DO ‑ 178C/ED ‑ 12C: Statement Coverage, Decision Coverage, or Modified Condition / Decision Coverage (MC/DC).
Source-based instrumentation brings several major benefits: efficiency of tool execution (much faster than alternative coverage strategies using binary traces and target emulation, especially on native platforms), compact-size source trace files independent of execution duration, and support for coverage of shared libraries.
4.2.12. Data and control coupling coverage with GNATcoverage
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
DO ‑ 178C/ED ‑ 12C objective A7-8 states:
"Test coverage of software structure (data coupling and control coupling) is achieved".
This is part of overall structural coverage analysis. Although structural coverage activities (Statement, Decision, or MC/DC) can be carried out at various times, it is often performed during low-level testing. This allows precise control and monitoring of test inputs and code execution. If code coverage data is retrieved during low-level testing, structural coverage analysis can assess the completeness of the low-level tests.
In addition, the completeness of the integration tests needs to be verified. For that purpose the integration tests have to be shown to exercise the interactions between components that are otherwise tested independently. This is done through data and control coupling coverage activities. Each data and control coupling relationship must be exercised at least once during integration tests.
Data and control coupling are the interfaces between components, as
defined in the architecture. More specifically, data coupling concerns
the data objects that are passed between modules. These may be global
variables, subprogram parameters, or any other data passing
mechanisms. Control coupling concerns the influence on control
flow. Inter-module subprogram calls are obvious cases of control
coupling (they initiate a control flow sequence) but subtler cases
such as a global variable influencing a condition can be also
considered as control coupling. For example, if module Alpha
has something like:
if G then
Do_Something;
else
Do_Something_Else;
end if;
and in a module Beta:
G := False;
Then this is really an example of control coupling, and not data coupling. Using a global variable to effect this control flow is considered an implementation choice.
In the software engineering literature, the term coupling generally has negative connotations since high coupling can interfere with a module's maintainability and reusability. In DO ‑ 178C/ED ‑ 12C there is no such negative connotation; coupling simply indicates a relationship between two modules. That relationship needs to be defined in the software architecture and verified by requirements-based integration tests.
One strategy to verify coverage of data and control coupling is to perform statement coverage analysis during integration testing. GNATcoverage may be used in this way to detect incomplete execution of such data and control flows. This may require coding constraints, such as limited use of global data, or additional verification for such data:
Parameter passing and subprogram calls: Statement coverage ensures that all subprograms are called at least once. Additional verification is needed to demonstrate correctness properties for the parameters.
Global data: The
Globalaspect in SPARK (and in Ada 2022) can be used to verify correct usages of global data.
4.2.13. Demonstrating traceability of source to object code
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
For software at level A, DO ‑ 178C/ED ‑ 12C objective A7-9 requires identifying if code not visible at the source code level is added by the compiler, linker, or other means; if so, it is necessary to verify such code for correctness. Compiler-added code typically takes the form of extra branches or loops that are explicit in the object code but not at the source level. One example in Ada is the implicit checking that is often required by the language semantics.
A statement like:
A : Integer range 1..10;
B : Integer;
...
A := B;
may be compiled into the following pseudo-object code:
if B >= 1 or else B <= 10 then
A := B;
else
raise Constraint_Error;
end if;
This assumes that checks are retained at run-time. However, even with checks disabled, a compiler for either Ada or C may still need to generate non-traceable code to implement some language constructs. An Ada example is array slice assignment, which results in loops at the object code level on typical target hardware:
A, B : String (1..100);
...
A (1..50) := B (11..60);
AdaCore has verified the correctness of non-traceable code for the GNAT Pro for Ada and GNAT Pro for C compilers, based on representative samples of source code. Samples were chosen for the language features permitted by common code standards. Object code was generated for each sample, and any additional (non-traceable) code was identified. For each non-traceable feature, additional requirements and tests were provided to verify that the behavior of the resulting code was indeed as required.
Traceability analyses for GNAT Pro for Ada and GNAT Pro for C are available. These analyses take into account the specific compiler version, compiler options, and code standard that are used, to ensure that the code samples chosen are representative. If some specific language features, options, or compiler versions are not suitable for the analysis, appropriate adaptations are made.
4.3. Use case #1b: Coding with Ada using OOT features
This use case is based on use case #1, taking advantage of Ada and the AdaCore ecosystem, but with a design that uses Object-Oriented Technologies. As a result, the following vulnerabilities identified in the technology supplement DO ‑ 332/ED ‑ 217 need to be addressed:
Local type consistency
Dynamic memory management
Parametric polymorphism (genericity)
Overloading
Type conversion
Exception management
Component-based development
4.3.1. Object orientation for the architecture
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
Object orientation is a design methodology, a way to compose a system where the focus is on the kinds of entities that the system deals with, and their interrelationships. Choosing an object-oriented design will thus have a significant impact on the architecture, which is expressed in terms of classes and their methods (or primitive operations in Ada). This architecture can be modeled in many ways, for example with UML class diagrams.
The use of OOT can affect traceability between low-level requirements and code. Without object orientation, traceability is generally between a set of requirements and one module, one function or one piece of code. In an object-oriented design, as defined in DO ‑ 332/ED ‑ 217, §O.O.5.5:
"All functionality is implemented in methods; therefore, traceability is from requirements to the methods and attributes that implement the requirements".
4.3.2. Coverage in the case of generics
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
Genericity is one of the related techniques (not part of OOT) that is covered by DO ‑ 332/ED ‑ 217. A generic unit is a template for a piece of code that can be instantiated with different parameters, including types and subprograms. A complication with respect to certification is that the same generic unit may have different instantiations that behave differently. Consider, for example, a simple generic Ada function that can be instantiated with an integer type to perform some basic computation:
generic
type Int_Type is range <>;
function Add_Saturated (Left, Right, Max : Int_Type)
return Int_Type
with Pre => Max>0;
function Add_Saturated (Left, Right, Max : Int_Type)
return Int_Type is
Temp : Int_Type;
begin
Temp := Left + Right;
if Temp > Max then
return Max;
elsif Temp < -Max then
return -Max;
else
return Temp;
end if;
end Add_Saturated;
Then consider two separate instantiations:
with Add_Saturated;
procedure Test_Gen is
function Add_1 is new Add_Saturated (Integer);
type Small_Int is range -10 .. 10;
function Add_2 is new Add_Saturated (Small_Int);
N1 : Integer;
N2 : Small_Int;
begin
N1 := Add_1 (6, 6, 10); -- Correctly yields 10
N2 := Add_2 (6, 6, 10); -- Raises Constraint_Error
end Test_Gen;
Calling Add_1 (6, 6, 10) will yield 10 as a result. Calling
Add_2 (6, 6, 10) will raise Constraint_Error on the
first addition, since the sum Left + Right will be equal to 12
and therefore violate the range constraint for Small_Int.
Different instantiations of the same generic unit can thus exhibit different behaviors. As a result, DO ‑ 332/ED ‑ 217 specifies that each generic instance must be tested (and covered); see section OO.D.1.2.3.
GNATtest will generate a test harness taking this requirement into account. In particular, it will generate a separate testing setup for each instance, while keeping a generic test procedure for all of them.
GNATcoverage can separately report the coverage of each generic
instance, based on the -S instance switch.
With respect to traceability, the code of a generic instantiation is traceable to the source. Indeed, at the point of instantiation, the effect is as though the generic template were expanded in place, with formal parameters replaced by the actuals. (This expansion is not at the level of source text, but rather is based on a program representation where all names have been semantically resolved.) As a result, using a generic doesn't add any non-traceable code. Code is traced from the generic template to the object code, once per instance.
4.3.3. Dealing with dynamic dispatching and substitutability
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
One of the major features of OOT is dynamic dispatching (also called dynamic binding), which adds considerable expressive power but also presents challenges to verification. With dynamic dispatching, the subprogram to be invoked on a reference to a target object is not known statically but rather is resolved at run time based on which class the target object belongs to. This differs from a call through an access-to-subprogram value in the sense that, with dynamic dispatching, the potential destination subprograms are constrained to a specific class hierarchy as determined by the type of the reference to the target object (the controlling parameter, in Ada terms).
In Ada, a subprogram that can be invoked through dynamic dispatching — this is known as a primitive subprogram — can never be removed by a subclass; it is either inherited or overridden. Thus on a call that is dynamically dispatched, although it is not known at compile time which subclass's version of the subprogram will be invoked, some subclass's implementation of the subprogram will indeed be called. Ada is not susceptible to "no such method" errors that can arise with dynamic dispatching in some other languages.
4.3.3.1. Understanding Substitutability
From a safety point of view, not knowing the specific target of a given call introduces significant issues for verifiability. DO ‑ 332/ED ‑ 217 states that if an inheritance hierarchy is constructed so that each subclass specializes its superclass (i.e., wherever a superclass instance is permitted a subclass instance may be substituted) then dynamic dispatching is acceptable. This substitutability property for a class inheritance hierarchy is known as the Liskov Substitution Principle (LSP).
If a hierarchy complies with LSP, then testing and other verification can be conducted based on properties defined at the class level, which will then need to be respected by each subclass. As will be explained below, this has implications on the pre- and postconditions that are allowed when a dispatching subprogram is overridden.
Here is a specific — although simplified — example: an aircraft type with a subprogram that is supposed to open the doors.
package Aircraft_Pkg is
type Aircraft is abstract tagged private;
procedure Open_Doors (Self : Aircraft)
with Pre'Class => Self.On_Ground,
Post'Class => Self.Doors_Opened;
...
private
...
end Aircraft_Pkg;
The contracts for the pre- and postconditions reflect the low-level requirements:
the aircraft has to be on the ground prior to having its doors opened, and
the doors are opened as a result of the call.
The Aircraft type could be used as follows:
procedure Landing_Procedure (My_Aircraft : Aircraft'Class) is
begin
...
while not My_Aircraft.On_Ground loop
...
end loop;
-- Here if My_Aircraft is on the ground
My_Aircraft.Open_Doors; -- Dispatching call
My_Aircraft.Let_Passengers_Out;
...
end Landing_Procedure;
We're first waiting until the aircraft is actually on the ground, then open the doors, then as the doors are opened we let passengers out.
All types in the Aircraft inheritance hierarchy have to comply
with the Aircraft contracts. That is, for any type in the
Aircraft'Class hierarchy, the Open_Doors subprogram for
that type can require at most the On_Ground precondition and
nothing stronger. If a stronger precondition were imposed, then a
dynamically dispatching call of Open_Doors could fail if the
actual parameter were of this (non-substitutable) type. The extra
precondition would not necessarily be known to clients of the root
type Aircraft.
Analogously for the postcondition, any type in the
Aircraft'Class hierarchy has to guarantee at least the
Doors_Opened property, since this will be assumed by callers of
Open_Doors.
In short, the substitutability property can be summarized as follows:
If a type hierarchy is to be substitutable, then a dispatching subprogram for a derived type can weaken but not strengthen the precondition of the overridden subprogram for its parent type, and can strengthen but not weaken the postcondition.
The class-wide Pre'Class and Post'Class aspects are
inherited (unless overridden) and have other semantics that directly
support this substitutability property. The specific (non-class-wide)
aspects Pre and Post are not inherited and should only
be used if the hierarchy does not support substitutability.
Let's now define a Jet:
type Jet is new Aircraft with ...
overriding
procedure Open_Doors (Self : Jet)
with Pre => Self.On_Ground and Self.Engines_Off,
Post'Class => Self.Doors_Opened and not Self.Pressurized;
Suppose that Landing_Procedure is invoked on an object of type
Jet:
J : Aircraft'Class := Jet'(...);
...
Landing_Procedure (J);
In the call My_Aircraft.Open_Doors, first the precondition for
Open_Doors for Aircraft will be evaluated (since the
actual parameter is of the class-wide type
Aircraft'Class. That's not a problem, since the caller sees
this precondition. However, then the specific precondition for
Open_Doors for Jet is evaluated, and there is a problem with
the additional constraint — requiring the engines to be off. The
Jet type could have been defined long after the
Landing_Procedure subprogram was written, so the design of the
Landing_Procedure code would not have taken the added
precondition into account. As a result, the Open_Doors
procedure could be invoked when the engines were still running,
violating the requirement. (With run-time assertion checking enabled,
an exception would be raised.) The type Jet is not
substitutable for the type Aircraft on invocations of
Open_Doors.
The non-substitutabiity is reflected in the use of the specific aspect
Pre rather than the class-wide aspect Pre'Class. In a
type hierarchy rooted at type T where Pre'Class is
specified at each level for a subprogram Proc, the effective
precondition for a dispatching call X.Proc where X is of
the type T'Class is simply the precondition specified for
Proc for the root type T (which is the only precondition
known to the caller). In the Jet example, if Pre'Class
had been used, a dispatching call to Open_Doors would not check
the Engines_Off condition.
In short, if a subclass is to be substitutable then it may weaken but
not strengthen a subprogram's precondition, and it should use
Pre'Class rather than Pre. If a subclass needs to
strengthen a precondition then it is not substitutable and should use
Pre rather than Pre'Class.
The postcondition for Open_Doors for Jet does not have
this problem. It adds an additional guarantee: pressurization is off
after the opening of the doors. That's OK; it doesn't contradict the
expectations of the Landing_Procedure subprogram, it just adds
an additional guarantee.
The Jet type illustrated non-substitutability due to
precondition strengthening. Non-substitutability can also arise for
postconditions, as illustrated in a slight variation of the
Aircraft type:
package Aircraft_Pkg is
type Aircraft is abstract tagged private;
procedure Open_Doors (Self : Aircraft)
with Pre'Class => Self.On_Ground,
Post => Self.Doors_Opened;
-- Specific, not class-wide
...
private
...
end Aircraft_Pkg;
Here's a possible declaration for a hot air balloon:
type Hot_Air_Balloon is new Aircraft with ...
overriding
procedure Open_Doors (Self : Hot_Air_Balloon)
with Pre'Class => Self.On_Ground or Self.Tethered,
Post => Self.Doors_Unlocked;
In this case, the precondition is relaxed (we're assuming a short
tether). This is acceptable, since the landing procedure will still
check the stronger precondition and wait for the aircraft to be on the
ground; the class-wide precondition of the root type is checked on a
dispatching call. (The weaker precondition would be checked on a call
such as B.Open_Doors where B is either of the specific
type Hot_Air_Balloon or the class-wide type
Hot_Air_Balloon'Class.)
However, a Hot_Air_Balloon is less automated than a Jet:
the doors don't open automatically, they just unlock. The
Landing_Procedure subprogram assumes the postcondition for
Aircraft (that the doors are opened), but this is not
guaranteed for a Hot_Air_Balloon, so passengers might be pushed
out while the doors are unlocked but still closed. The new
postcondition is breaking the requirement by weakening its parent
type's postcondition, and this is not acceptable. Thus the
Hot_Air_Balloon type is not substitutable for Aircraft.
Substitutability defects may be evidence of a number of problems; for example, the hierarchy of classes or requirements may be incorrect, or the classes may be modeling properties inappropriately. Overall, this indicates design issues to be addressed when specifying the low-level requirements and/or architecture.
A natural question is how to detect substitutability defects (or achieve confidence that such defects are not present) in the application. DO ‑ 332/ED ‑ 217 provides three approaches: pessimistic testing, local substitution tests, or formal proofs.
4.3.3.2. Verifying substitutability by pessimistic testing
Pessimistic testing is conceptually the easiest to understand. The
idea is to test at each point of dispatch all possible types that
could be substituted. In the Landing_Procedure example,
assuming that our system is managing both jets and hot air balloons,
this would mean two sets of tests: one for the Jet type, and one for
Hot_Air_Balloon. This is working around the difficulty of not knowing
statically the potential target of a call: we just test all possible
scenarios.
This is particularly appropriate with flat hierarchies, which may be broad but not deep. An example is an OOP design pattern for an abstract root type (such as a container data structure) with concrete specializations corresponding to different representational choices. In this case, regular requirement-based testing is equivalent to pessimistic testing. However, the complexity of additional testing can quickly become unmanageable as the depth of the class hierarchy increases.
4.3.3.3. Verifying substitutability through requirement-based testing
In this case verification of substitutability is done on top of
regular testing. In the above examples the Aircraft, Jet
and Hot_Air_Balloon requirements are all associated with
specific requirement-based tests. Substitutability can be demonstrated
by running top level tests with instances of other types of the
class. In other words, tests developed based on requirements of
Aircraft must pass with instances of Jet and
Hot_Air_Balloon. This is enough to demonstrate
substitutability, effectively testing the substitution. This may
require more or fewer tests depending on OOP usage. In particular, for
large class hierarchies, testing at the class level is much more
cost-effective than testing every possible target of every possible
dispatching call in the actual code.
The GNATtest tool supports generation of the appropriate test
framework for substitution testing; see the GNATtest option
--validate-type-extensions.
4.3.3.4. Verifying substitutability through formal proof
In conjunction with DO ‑ 333/ED ‑ 216 (Formal Methods supplement), and assuming that requirements can be expressed in the form of pre- and postconditions, the consistency between an overriding subprogram and its parent type's version can be verified through formal proof. This can be done in particular with the SPARK language. There are two criteria for substitutability:
The precondition of a subprogram for a type must imply the precondition of each overriding subprogram in the class hierarchy.
The postcondition of any overriding subprogram for a type must imply the postcondition of the corresponding subprogram for each ancestor type in the hierarchy
These preconditions and postconditions — or requirements — must also be verified, through either requirement-based testing or formal proofs.
The SPARK GNATprove tool can verify consistency of classes of types, and in particular consistency of pre- and postconditions as described above. To enable such verification, these must be declared as class-wide contracts as in the initial example of the Aircraft type above.
4.3.3.5. Differences between local and global substitutability
DO ‑ 332/ED ‑ 217 does not require classes to be globally substitutable, but only locally; that is, only around actual dispatching points. For example, the following code is not globally substitutable, but is locally substitutable at the dispatching calls:
package Aircraft_Pkg is
type Aircraft is abstract tagged private;
procedure Open_Doors (Self : Aircraft)
with Pre'Class => Self.On_Ground,
Post'Class => Self.Doors_Opened;
procedure Take_Off (Self : Aircraft)
with Pre'Class => Self.On_Ground and not
Self.Doors_Opened,
Post'Class => not Self.On_Ground;
...
private
...
end Aircraft_Pkg;
package Aircraft_Pkg.Jet_Pkg is
type Jet is new Aircraft with ...
overriding
procedure Open_Doors (Self : Jet)
with Pre => Self.On_Ground and Self.Engines_Off,
-- Not substitutable
Post'Class => not Self.Pressurized;
overriding
procedure Take_Off (Self : Aircraft)
-- Inherit Aircraft's precondition
with Post'Class => not Self.On_Ground and
Self.Speed >= 100.0;
...
private
...
end Aircraft_Pkg.Jet_Pkg;
...
X, Y : Aircraft'Class := Jet'(...)
...
X.Take_Off;
Y.Take_Off;
The Jet type is not globally substitutable for Aircraft,
since the precondition on Open_Doors for Jet is stronger
than the precondition on Open_Doors for Aircraft. But
Jet is locally substitutable in the above fragment:
The invocations
X.Take_OffandY.Take_Offdispatch toJet, butJetis substitutable forAircrafthere:
The precondition for
Take_Off(Aircraft)is inherited byJet,andThe postcondition for
Take_Off(Aircraft)is strengthened byJet
Whether it is easier to demonstrate local versus global suitability for a given class depends on the architecture and the ease of identification of actual dispatch destinations and substitutability. DO ‑ 332/ED ‑ 217 allows the applicant to decide on whichever means is the most appropriate.
4.3.4. Dispatching as a new module coupling mechanism
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
With procedural programming, modules can be interfaced, or coupled, through parameter passing, subprogram calls or global variables (data and control coupling). Object orientation introduces a new way in which two modules may interface with each other: by extension / type derivation. Following-up on previous examples:
procedure Control_Flight (Plane : Aircraft'Class) is
begin
...
-- Dispatching call, may call Take_Off from instances
-- defined in other modules, creating coupling
-- relationship with those modules
Plane.Take_Off;
...
end Control_Flight;
Aircraft of different types may be defined in separate modules. A connection between these modules and the rest of the application may be made by dispatching from this call. All objectives that apply to control and data coupling now apply to type derivation coupling, in particular the coverage objectives. Whether or not testing with all possible derivations in the system is used (i.e., pessimistic testing) depends of the strategy chosen for substitutability demonstration.
4.3.5. Memory management issues
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
In addition to local type consistency, which was described in the preceding section, DO ‑ 332/ED ‑ 217 also introduced another new verification objective: robustness of dynamic memory management. This objective encompasses not only explicit use of dynamic memory, through either automatic reclamation (garbage collection) or application-provided allocation / deallocation, but also implicit uses through higher level data structures such as object collections of various kinds. DO ‑ 332/ED ‑ 217 identifies a number of criteria that need to be met by any memory management scheme:
The allocator returns a reference to a valid piece of memory, not otherwise in use
If enough space is available, allocations will not fail due to memory fragmentation
An allocation cannot fail because of insufficient reclamation of inaccessible memory
The total amount of memory needed by the application is available (that is, the application will not fail because of insufficient memory)
An object is only deallocated after it is no longer used
If the memory management system moves objects to avoid fragmentation, inconsistent references are prevented
Allocations and deallocations complete in bounded time
Meeting these criteria may be the responsibility of the run-time memory management library (referred to as the "memory management infrastructure", or MMI in DO ‑ 332/ED ‑ 217) or the application code (AC). Table OO.D.1.6.3 in DO ‑ 332/ED ‑ 217 presents several different memory management techniques that can be used. For each technique the table identifies whether the MMI or the AC is responsible for meeting each criterion.
Dynamic memory is identified as a specific issue in object orientation because, in many languages, it is very difficult or even impossible to use object-oriented paradigms without dynamic memory management. This is in particularly true for reference-based languages such as Java.
Although dynamic memory is also helpful when OOP is used in Ada,
simple architectures may allow creating (and subsequently dispatching
on) stack-resident or library-level objects, without needing dynamic
memory. This can be done if such objects are of a class-wide type. The
main constraint is that each object has to be initialized at
declaration, and its specific type cannot change later. For example,
the following code provides a function returning an object of a type
in the Aircraft class hierarchy, depending on a parameter:
type Aircraft is abstract tagged ...
type Jet is new Aircraft with ...
type Hot_Air_Balloon is new Aircraft with ...
...
function Create (T : Integer) return Aircraft'Class is
begin
if T = 1 then
return Jet'(<initialization of a Jet>);
elsif T = 2 then
return Hot_Air_Balloon'(...);
-- initialization of a Hot_Air_Balloon
else
raise <some exception>;
end if;
end Create;
Objects of the class-wide type Aircraft'Class can be created as
local or global variables:
N : Integer := Get_Integer; -- Dynamically computed
P : Aircraft'Class := Create (N);
...
P.Take_Off;
Here, P is allocated on the stack and may be either a
Jet or a Hot_Air_Balloon. The call to P.Take_Off
will dispatch accordingly.
For notational convenience it may be useful to reference objects of a class-wide type through access values (pointers), since that makes it easier to compose data structures, but to prevent dynamic allocation. This can be achieved in Ada:
type Aircraft is abstract tagged ...
type Jet is new Aircraft with ...
type Hot_Air_Balloon is new Aircraft with ...
type Aircraft_Ref is access all Aircraft'Class;
for Aircraft_Ref'Storage_Size use 0;
-- No dynamic allocations
...
Jet_1, Jet_2 : aliased Jet := ...;
Balloon_1, Balloon_2, Balloon_3 : aliased Hot_Air_Balloon := ...;
type Aircraft_Pool_Type is array(Positive range <>) of Aircraft_Ref;
Pool : Aircraft_Pool_Type := (Jet_2'Access,
Balloon_3'Access,
Jet_1'Access);
...
for P of Pool loop
P.Take_Off; -- Dispatches
end loop;
These examples show how object orientation can be used in Ada without dynamic memory. More complicated designs, however, would probably need some form of dynamic memory and thus need to comply with the criteria listed above.
4.3.6. Exception handling
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
An exception identifies a condition that is detected by the executing program (often implicitly by the generated code) and causes an interruption of the normal control flow and a transfer to a handler. The condition is typically an error of some sort, for example an out-of-bounds index.
Exceptions are useful in certain scenarios:
When a program deals with externally provided data (operator input, sensor readings), the exception mechanism is a convenient way to express validity checks. A handler can perform appropriate diagnostic / recovery actions.
When an emergency shutdown is needed for a system component, a "last chance handler" can take the appropriate measures.
However, the general exception mechanism complicates certification for several reasons:
Typically, verification should have detected and prevented the exception from occurring in the final code. That is, exceptions can correspond to violations of preconditions, and such violations should not occur in verified code.
Since the normal control flow has been abandoned, the program may be in an instable state (for example with aggregate data structures not fully updated) and writing an appropriate handler can be difficult.
DO ‑ 332/ED ‑ 217 specifies that exception handling needs to be taken into account at the architecture level, but doesn't provide many more details. It also lists vulnerabilities to consider; for example, an exception might not be handled properly and as a result the program could be left in an inconsistent state.
The GNAT Pro compiler supplies several strategies concerning exceptions.
Checks can be globally deactivated. By default, execution of certain constructs (an out-of-range assignment for example) generates a run-time check. This can be removed through the
-poption for the compiler. This should only be done after verifying that such checks cannot fail.If exceptions are kept but are meant to trigger an application shutdown, they can be connected to a "last chance handler". This allows the application to perform the needed finalization, such as diagnostics and logging, after which it is terminated and possibly rebooted.
Exceptions can also be locally handled; this is achieved by specifying
pragma Restrictions (No_Exception_Propagation). This GNAT-specific restriction ensures that an exception is only raised when its handler is statically in the same subprogram. Exception handling can then be implemented (conceptually) by a simple branch to its handler. Such a policy is much easier to manage in a safe way than general exception propagation. Local handling is useful in situations where the software requirements specify a particular termination behavior for a subprogram under conditions that are best detected by raising an exception. An example is a "saturated add" procedure that takes two positive integers and delivers a positive integer result and an overflow status: the integer result will be the actual sum if no overflow occurred, and the maximum positive value if an overflow occurred.
type Overflow_Status is (No_Overflow, Overflow);
procedure Saturated_Add (I1, I2 : in Positive;
Result : out Positive;
Status : out Overflow_Status) is
begin
Result := I1+I2;
Status := No_Overflow;
exception
when Constraint_Error =>
Result := Integer'Last;
Status := Overflow;
end Saturated_Add;
SPARK addresses the exception handling issue by ensuring that exceptions are never raised:
The SPARK tools can be used to demonstrate the absence of run-time exceptions.
Handlers are not permitted.
Raise statements are permitted but must be proved to never execute.
4.3.7. Overloading and type conversion vulnerabilities
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
Many languages allow subprogram overloading (use of the same name for different subprograms, with a call resolved based on the types of the actual parameters and possibly also the return type for a function) and implicit type conversions. This combination can lead to readability and/or maintainability issues. For example, the application may have two functions with the same name and the same number of parameters, only distinguished by their type. In C++ this could be:
int f (int x);
int f (float x);
...
int r = f (100);
Knowing which function f() will be called is not immediately
obvious. Furthermore, if the original version of the program contained
only the declaration of f() with a float parameter, and
the declaration of f() with an int parameter was added during
maintenance, then the recompilation of f(100) would silently
change the effect of the program to invoke the new version of
f().
Compiler warnings or static analysis tools are required to identify such cases and warn the user that a possibly unintended call may be made.
Such problems are much less frequent in Ada, since the language does not allow these sorts of implicit conversions. If a call is ambiguous, this is detected and the developer will need to specify the intent. Here is an example:
type Miles is new Integer;
type Kilometers is new Integer;
function F (Distance : Miles) return Integer;
function F (Distance : Kilometers) return Integer;
R : Integer := F (100); -- Ambiguous
The above code is illegal in Ada due to the ambiguity: the literal 100
could be interpreted as either a Miles or a Kilometers
value. A construct called type qualification can be used to make
the type explicit and the call unambiguous:
R1 : Integer := F ( Miles'(100) );
R2 : Integer := F ( Kilometers'(100) );
With its restrictions on implicit conversions and its provision of an explicit facility for making subprogram calls unambiguous, Ada supports the necessary verification activity to mitigate the vulnerabilities in question.
4.3.8. Accounting for dispatching in performing resource analysis
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Vulnerabilities |
|
One of the difficulties in resource analysis (worst case execution time, maximal stack usage, etc.) is how to take into account that the target of a dispatching call is unknown. This can be addressed by including resource consumption limits as part of the call requirements. E.g., each overriding version of a given subprogram must complete within a particular relative deadline, or use at most a particular amount of stack space. The usual substitutability rules would then apply; in effect such resource consumption requirements are a form of postcondition.
The GNATstack tool would provide a more pessimistic approach to worst-case stack computation, and use the maximum value required over all possible targets in its computation.
4.4. Use case #2: Using SPARK and Formal Methods
This use case is also a variant of use case #1, since the source code is developed in Ada. It thus benefits from Ada's advantages and the AdaCore ecosystem. The difference here is that the contracts, in the SPARK subset of Ada, are used to develop the low-level requirements. These contracts are amenable to formal analysis by GNATProve, which can verify consistency with the implementation.
4.4.1. Using SPARK for design data development
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The Ada language in itself is already a significant step forward in terms of software development reliability. However, as a general-purpose language it contains features whose semantics is not completely specified (for example, order of evaluation in expressions) or which complicate static analysis (such as pointers). Large applications may need the latter, for example to define and manipulate complex data structures, to implement low-level functionality, or to interface with other languages. However, sound design principles should isolate such uses in well-identified modules, outside a safe core whose semantics is deterministic and which is amenable to static analysis. This core can be developed with much more stringent coding rules, such as those enforced in the SPARK language.
SPARK is an Ada subset with deterministic semantics, whose features are amenable to static analysis based on formal methods. For example, it excludes exception handling, side effects in functions, and aliasing (two variables referring to the same object at the same time); it limits the use of pointers (access values); and it guarantees that variables are only read after they have been initialized. Note that a SPARK program has the same run time semantics as Ada. It is compiled with a standard Ada compiler, and can be combined with code written in full Ada.
SPARK is also a superset of the Ada language in terms of statically verified specifications. A variety of pragmas and aspects can be used to define properties (contracts) such as data coupling, type invariants, and subprogram pre- and postconditions. These are interpreted by the SPARK analysis tool and do not have any effect at run-time (and thus they can be ignored by the compiler, although dynamic verification is allowed for some) but they can formally document the code and allow further static analysis and formal proof.
Even without taking advantage of SPARK's support for formal methods, coding in SPARK (or using SPARK as the basis of a code standard) helps make the software more maintainable and reliable. SPARK's contracts use the same syntax as Ada, and as just noted, a number of checks that a SPARK analysis tool could enforce statically can be enabled as run-time checks using standard Ada semantics, allowing traditional testing-based verification.
SPARK programs can be verified to have safety and security properties at various levels. For critical software, SPARK analysis can demonstrate absence of run-time errors/exceptions (such as buffer overrun and integer overflow) and ensure that variables are assigned to before they are read. In the extreme, SPARK can show that an implementation complies with a formal specification of its requirements, and this may be appropriate for some critical kernel modules. (A description of how SPARK may be introduced into a project at various levels, depending on the system's assurance requirements, may be found in a booklet co-authored by AdaCore and Thales [AT20].) Since subprogram pre- and postcondition contracts often express low-level requirements, some low-level requirements-based testing may be replaced by formal proofs as described in the DO ‑ 333/ED ‑ 216 Formal Methods supplement to DO ‑ 178C/ED ‑ 12C.
In summary, SPARK enhances Ada's benefits in reducing programming errors, increasing the quality and effectiveness of code reviews, and improving the overall verifiability of the code. It facilitates advanced static analysis and formal proof. At the start of a new development, considering SPARK for at least part of the application kernel can greatly decrease defects found late in the process. And when adding functionality to an existing project, SPARK can likewise bring major benefits since it allows interfacing with other languages and supports combining formal methods with traditional testing-based verification.
As part of the DO ‑ 178C/ED ‑ 12C processes, a manual review of the requirements translated into SPARK contracts needs to be conducted. Although SPARK can ensure that contracts are correctly and consistently implemented by the source code, the language and its analysis tools cannot verify that the requirements themselves are correct.
Another issue that needs to be taken into account is the justification of the formal method itself. It should provide a precise and unambiguous notation, and it needs to be sound (i.e., if it is supposed to identify a particular property in the source code, such as no reads of uninitialized variables, then it has to detect all such instances). The qualification material for the formal analysis tool would typically address this issue. Moreover, any assumptions concerning the formal method must be identified and justified.
4.4.2. Robustness and SPARK
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
As discussed in Robustness / defensive programming, robustness is concerned with ensuring correct software behavior under abnormal input conditions. Abnormal input can come from two sources:
External: invalid data from the operational environment (for example due to an operator input error or a hardware failure), or
Internal: a defect in the software logic.
Behavior in the external case needs to be considered during requirements development, and from the SPARK perspective (where these requirements are captured as pre- or postconditions) there is no fundamental difference between a regular requirement and a robustness requirement. The proof performed by SPARK takes into account the entire potential input space, whether normal or abnormal.
The internal case, where faulty code passes an invalid value to a subprogram, can be detected by SPARK (GNATprove) if the validity requirement is part of the subprogram's precondition. That is, GNATprove will report its inability to prove that the subprogram invocation satisfies the precondition.
4.4.3. Contributions to Low-Level Requirement reviews
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Using SPARK to define low-level requirements (LLRs) simplifies the verification process. Since the LLRs are expressed in a formal language (Ada 2012 or SPARK contracts), they are accurate, unambiguous, and verifiable: expressed as Boolean expressions that can be either tested or formally proven.
SPARK also makes it easier to define a software design standard, which can use the same terms and concepts as a code standard, and can be checked with similar tools.
4.4.4. Contributions to architecture reviews
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
According to DO ‑ 333/ED ‑ 216, the reviews and analyses of the software architecture "detect and report errors that may have been introduced during the development of the software architecture". SPARK helps meet several of the associated objectives:
Consistency. SPARK's flow analysis contracts can specify various relationships between the software components, including a component's data dependencies and how its outputs depend on its inputs. The SPARK analysis tool (GNATprove) can then verify the correctness of these contracts / relationships, assuming TQL-5 qualification, and the consistency of the architecture. For example:
type Probe_Type is record ... end record; Probes : array (1 .. 10) of Probe_Type; procedure Calibrate_Probe (Index : Integer; Min, Max : Integer) with Globals => (In_Out => Probes), Depends => (Probes => (Probes, Index, Min, Max));
The
Calibrate_Probeprocedure will use the global variableProbesinin outmode (it can read from and write to the variable) and will compute its new value using the old value ofProbes(at the point of call) together with the parametersIndex,MinandMax. SPARK will verify that the only global variable used isProbes, and that this variable and the parameters specified in theDependsaspect (and no other variables) are used to compute the value.Verifiability. As a formal notation with tool support, SPARK can help ensure that the architecture is verifiable. One example is the protection against one component sending invalid input to another. As noted earlier, this is part of the robustness requirement that is met by SPARK's pre- and postconditions. Keeping these contracts active even in the final executable object code will protect a component from sending or receiving invalid input, and will detect any misuse.
Conformance with standards. An architecture standard can be defined in part using similar formalisms as a code standard, thus allowing the use of similar tools for verification.
4.4.5. Contributions to source code reviews
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The SPARK analysis tool (GNATprove) can verify that the source code complies with its low-level requirements (LLRs) defined as SPARK contracts. This can satisfy the source code verification objectives, depending on the part of the design data formally defined:
Compliance with the LLRs: code is proven against the LLRs
Compliance with the architecture: code is proven against the architectural properties defined at the specification level
Verifiability: if the code is verified by SPARK, it is verifiable. No specific activity is needed here.
Traceability: traceability is implicit, from the LLRs defined in the specification to the implementation
The SPARK tool achieves proof in a local context; it's doing a unit proof. The postcondition of a subprogram will be proven according to its code and its precondition, which makes the SPARK approach scalable. For example, consider the following function:
type My_Array is array(Positive range <>) of Integer;
function Search (Arr : My_Array;
Start : Positive;
Value : Integer)
return Integer
with Pre =>
Start in Arr'Range,
Post =>
(if Search'Result = -1 then
(for all I in Start .. Arr'Last => Arr (I) /= Value)
else Arr(Search'Result) = Value);
The code inside the body might start with:
function Search (Arr : My_Array;
Start : Positive;
Value : Integer)
return Integer is
begin
if Arr (Start) = Value then
return Start;
end if;
...
Because of the precondition, the SPARK analysis tool can deduce that the array indexing will not raise an exception.
Here's another piece of code, responsible for replacing all occurrences of one value by the other:
procedure Replace (Arr : in out My_Array;
X, Y : in Integer)
with Pre => Arr'Length /= 0 and X /= Y,
Post => (for all I in Arr'Range =>
(if Arr'Old (I) = X then Arr (I) = Y));
procedure Replace (Arr : in out My_Array; X, Y : Integer) is
Ind : Integer := Arr'First;
begin
loop
Ind := Search (Arr, Ind, X);
exit when Ind = -1;
Arr (Ind) := Y;
exit when Ind = Arr'Last;
end loop;
end Replace;
When Search is invoked, the only things that the prover knows
are its pre- and postconditions. It will attempt to show that the
precondition is satisfied, and will assume that the postcondition is
True. Whether or not Search is proven doesn't matter at this
stage. If it can't be proven with the SPARK tools, we may decide to
verify it through other means, such as testing.
The SPARK analysis tools can demonstrate absence of run-time errors, absence of reads of uninitialized variables, absence of unused assignments, and other properties. Additional contracts may sometimes be needed for assistance (e.g., assertions), but overall SPARK's restricted feature set and advanced proof technology automate contract proofs with very few cases needing to be manually dismissed. This almost entirely replaces manual reviews and analyses.
The analysis performed by SPARK is usually very tedious to conduct by manual review. As an example, here's a simple piece of code:
subtype Some_Int is Integer range ...;
Arr : array (Integer range <>) of Some_Int := ...;
Index, X, Y, Z : Integer;
...
Arr (Index) := (X * Y) / Z;
Exhaustive analysis of all potential sources of errors requires verifying that:
Xis initializedYis initializedZis initializedIndexis initialized and is inArr'Range(X * Y)does not overflowZis not equal to zero(X * Y) / Zis within the range ofSome_Int
The GNATprove tool will check each of these conditions, and report any that might not hold.
4.4.6. Formal analysis as an alternative to low-level testing
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
As stated in Section 6.4 of DO ‑ 178C/ED ‑ 12C, the purpose of software testing is "to demonstrate that the software satisfies its requirements and to demonstrate ... that errors that could lead to unacceptable failure conditions ... have been removed". Thus it's not the source code but the binary code that is tested, and within an environment representative of the final target. As a consequence, the compiler itself is not part of the trusted chain. Since its outputs are verified, it can be assumed to be correct within the exact conditions of the certified system.
Various activities in DO ‑ 178C/ED ‑ 12C increase the confidence in the compilation step, such as selecting an appropriate set of options, assessing the effect of its known problems and limitations, and (at software level A) verifying the correctness of non-traceable code patterns.
DO ‑ 333/ED ‑ 216 explains how certain classes of testing can be replaced by formal analysis ("proof"). When low level requirements are expressed as formal properties of the code, it's possible to formally verify that the source code completely implements the requirements. Using this technique, however, requires additional activities to demonstrate absence of unintended function. Further, and more significantly, with formal analysis it's the source code that is checked against requirements, not the object code. As a result, additional activities are required to demonstrate correct behavior of the object code. This is the so-called property preservation issue, discussed in Property preservation between source code and object code.
4.4.7. Low-level verification by mixing test and proof ("Hybrid verification")
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
It is not always possible for the SPARK proof tool to prove all the contracts in an application. When this is due to limited capabilities in the proof technology, manually provided assistance may be a solution. However, some assertions and contracts might not be provable at all. This could be due to several factors:
The specification is in SPARK but the actual implementation is in a different language (such as C).
The contract or implementation uses Ada features outside of the SPARK subset.
Some constructs might not be amenable to formal proof, even if correct, because a piece of code is too complex.
Some final proof step may be hard to reach, requiring an effort that is excessive compared to some other verification technique.
For all of these reasons, a combination of proof and testing may be appropriate to fully verify the software. The basic principle is that SPARK proofs are local. They're performed assuming that each called subprogram fulfills its contracts: if its precondition is satisfied and the subprogram returns, then its postcondition will hold. If this correctness is demonstrated by formal proof, then the whole program is proven to comply with all contracts. However, correctness may also be demonstrated by testing. In this case, the dual semantics of contracts, dynamic and static, is key. The pre- and postconditions can be enabled as run-time checks to verify the expected output of the test procedures.
An efficient approach during the design process is to define an architecture that distinguishes between those components verified by formal proofs and those verified by testing. Mixing the two techniques is sometimes referred to as hybrid verification.
4.4.8. Alternatives to code coverage when using proofs
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
Structural code coverage is a test-based activity for verifying the exhaustivity of the testing, the completeness of the requirements, and the absence of unintended function (extraneous code, including dead code). With formal proofs, a different set of activities is needed to meet similar objectives. DO ‑ 333/ED ‑ 216 lists four activities to be performed:
Complete coverage of each requirement. This objective is to verify that each assumption made during the analysis is verified. In SPARK, these assumptions are easily identifiable. These are typically assertions in the code that cannot be proven automatically, for example because they are too complex or involve interfacing with non-SPARK code. These assumptions can be verified not with proofs but with alternative means such as testing and reviews.
Completeness of the set of requirements. In particular, for each input condition its corresponding output condition has been specified, and vice versa. This can be achieved, for example, by specifying dependency relationships between input and output (the SPARK aspect
Depends) or by partitioning the input space (the SPARK aspectContract_Case).Detection of unintended dataflow relationships. The SPARK aspect
Dependswill verify that each output is computed from its specified set of inputs.Detection of extraneous code. If the requirements are complete and all output variables (and their dependencies) are specified in these requirements, then any extraneous code should be dead and have no unintended effect. A manual review of the code will help achieve confidence that no such code is present.
4.4.9. Property preservation between source code and object code
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
When part of the executable object code (EOC) verification is performed using formal proof instead of testing, the source code is verified against the requirements, but the compiler is out of the loop. As a result, additional activities need to be performed to confirm proper translation of the source code to object code.
This is an open topic, and several approaches are possible to achieve credit for preservation of properties. One possibility is to perform an analysis of the compiler's processing similar to the source-code-to-object-code traceability study that addresses DO ‑ 178C/ED ‑ 12C §6.4.4.2.b. However, in addition to analyzing and justifying instances of non-traceability, the behavior of traceable code also needs to be considered / verified.
An alternative solution is to rely on the fact that SPARK functional contracts are executable Ada expressions. These are the actual properties that need to be preserved between source code and EOC. One way to demonstrate property preservation is to run the tests based on a higher level of requirements (such as Software / Software integration testing) once, with contract checks activated. If no contract failure occurs, we can conclude that the expected behavior has been properly translated by the compiler. This gives sufficient confidence in the code generation chain.
Running tests to verify this activity may seem to defeat the purpose of replacing testing by proof. However, this should not be considered as requirement-based testing (which is indeed replaced by proof). This property preservation verification is a confirmation of the formal analysis by executing the EOC with contract checking enabled.
4.4.10. SPARK Development Cycle Example
An example in Appendix B of DO ‑ 333/ED ‑ 216 — "FM.B.1.5.1 Unit Proof" — shows how the use of formal methods (in this case the CAVEAT tool for C, based on Hoare logic) can help meet various DO ‑ 333/ED ‑ 216 objectives. The same example can be expressed in SPARK, with the same contributions towards DO ‑ 333/ED ‑ 216 compliance.
The High-Level Requirements define the intent of the example; viz., to check the contents of a flash zone:
verify that the whole flash zone is initialized to the value 0xFF
if a memory location is different from 0xFF, the check has failed
The Low-Level Requirments comprise a textual description and a set of
formal properties. The textual description appears in DO ‑ 333/ED ‑ 216 and is
not repeated here. The formal properties of the A1F2_TestZone
procedure are of three kinds:
Global contract: identifies the dependence on external data
Post contract: the postcondition for the procedure
Loop_Invariant pragma: a condition that holds at each iteration
with Global => (Input => A1F2_Memory_Zone),
Post =>
-- COND_FCT
((for all K in T_A1F2_Index => A1F2_Memory_Zone(K) = 16#FF#) and then
Rl_Return = OK and then pFailure.FailureIndex = INDEX_NO_ERROR) or else
-- COND_ERR
((for some K in T_A1F2_Index => A1F2_Memory_Zone(K) /= 16#FF#) and then
Rl_Return = NOT_OK and then pFailure.FailureIndex = INDEX_FLASH_2);
pragma Loop_Invariant(for all K in T_A1F2_Index'First .. Rl_Index =>
A1F2_Memory_Zone(K) = Rl_Expectedvalue);
pragma Loop_Invariant(pFailure = APAT_Ce_sFAILURE_NO_ERROR
and then
Rl_Return = OK);
Here is the source code for the package spec (a1f2.ads) and
body (a1f2.adb):
package A1F2 with SPARK_Mode is
-- Type declarations --------------------------------------------------------
type T_RESULT is (OK, NOT_OK);
type T_FAILURES is (NCD, INDEX_NO_ERROR, INDEX_FLASH_2);
-- 32-bit word type for hardware interaction
type T_WORD32 is mod 2**32;
for T_WORD32'Size use 32;
-- Error descriptor record --------------------------------------------------
-- Record containing several fields that are used to store information about
-- the type of failure that occurred.
type T_FAILURE_DESCRIPTOR is record
FailureIndex : T_FAILURES;
VmemoryState2 : T_WORD32;
VmemoryState3 : T_WORD32;
VmemoryState4 : T_WORD32;
VmemoryState5 : T_WORD32;
end record;
-- Array type for memory zone -----------------------------------------------
A1F2_ZONE_SIZE : constant := 1024; -- Adjust based on your actual memory size
subtype T_A1F2_Index is Integer range 0 .. A1F2_ZONE_SIZE - 1;
type T_A1F2_MEMORY_ZONE is array (T_A1F2_Index) of T_WORD32;
-- Hardware memory mapping --------------------------------------------------
A1F2_Memory_Zone : T_A1F2_MEMORY_ZONE;
-- pragma Volatile(A1F2_Memory_Zone); -- Ensure no optimizations on memory access
-- pragma Import(Convention => Ada, Entity => A1F2_Memory_Zone);
-- Constants -----------------------------------------------------------------
APAT_Ce_sFAILURE_NCD : constant T_FAILURE_DESCRIPTOR := (
FailureIndex => NCD,
VmemoryState2 => 0,
VmemoryState3 => 0,
VmemoryState4 => 0,
VmemoryState5 => 0
);
APAT_Ce_sFAILURE_NO_ERROR : constant T_FAILURE_DESCRIPTOR := (
FailureIndex => INDEX_NO_ERROR,
VmemoryState2 => 16#FFFFFFFF#,
VmemoryState3 => 16#FFFFFFFF#,
VmemoryState4 => 16#FFFFFFFF#,
VmemoryState5 => 16#FFFFFFFF#
);
-- INDEX_FLASH_2 : constant Integer := 2;
-- Main test function -------------------------------------------------------
procedure A1F2_TestZone (pFailure : out T_FAILURE_DESCRIPTOR;
Rl_Return : out T_RESULT)
with Global => (Input => A1F2_Memory_Zone),
Post =>
-- COND_FCT
((for all K in T_A1F2_Index => A1F2_Memory_Zone(K) = 16#FF#) and then
Rl_Return = OK and then pFailure.FailureIndex = INDEX_NO_ERROR) or else
-- COND_ERR
((for some K in T_A1F2_Index => A1F2_Memory_Zone(K) /= 16#FF#) and then
Rl_Return = NOT_OK and then pFailure.FailureIndex = INDEX_FLASH_2);
-- The function checks a memory zone
-- @param Rl_Return the result of the check and a failure description is
-- updated.
-- @param pFailure the description of the failure
-- Definition of functional conditions
-- LET COND_FCT = (for all k with k > 0 and k <= A1F2_ZONE_SIZE
-- such that (A1F2_Memory_Zone.[.(k)] = 0xFF));
-- (for all K in T_A1F2_Index => A1F2_Memory_Zone(K) = 16#FF#)
--
-- Definition of failure conditions
-- LET COND_ERR = (there exists k with k > 0 and k <= A1F2_ZONE_SIZE
-- such that (A1F2_Memory_Zone.[.(k)] <> 0xFF));
-- There exists an index for which the initial value is wrong
-- (for some K in T_A1F2_Index => A1F2_Memory_Zone(K) /= 16#FF#)
end A1F2;
package body A1F2 with SPARK_Mode is
procedure A1F2_TestZone (pFailure : out T_FAILURE_DESCRIPTOR;
Rl_Return : out T_RESULT)
is
Rl_Expectedvalue : constant T_WORD32 := 16#FF#;
begin
-- Return value of the service
Rl_Return := OK;
pFailure := APAT_Ce_sFAILURE_NO_ERROR;
-- Treatment
Find_Failure : for Rl_Index in T_A1F2_Index'Range loop
declare
Tmp : T_WORD32 := A1F2_Memory_Zone(Rl_Index);
begin
if Tmp /= Rl_Expectedvalue then
-- Failure of Flash Test
Rl_Return := NOT_OK;
pFailure.FailureIndex := INDEX_FLASH_2;
pFailure.VmemoryState2 := A1F2_Memory_Zone(Rl_Index);
pFailure.VmemoryState3 := 0;
pFailure.VmemoryState4 := Rl_Expectedvalue;
pFailure.VmemoryState5 := A1F2_Memory_Zone(Rl_Index);
exit;
end if;
end;
pragma Loop_Invariant(for all K in T_A1F2_Index'First .. Rl_Index =>
A1F2_Memory_Zone(K) = Rl_Expectedvalue);
pragma Loop_Invariant(pFailure = APAT_Ce_sFAILURE_NO_ERROR
and then
Rl_Return = OK);
end loop Find_Failure;
end A1F2_TestZone;
end A1F2;
The SPARK proof tool produces the following output:
Phase 1 of 3: generation of data representation information ...
Phase 2 of 3: generation of Global contracts ...
Phase 3 of 3: flow analysis and proof ...
a1f2.adb:27:32: info: loop invariant initialization proved
a1f2.adb:27:32: info: loop invariant preservation proved
a1f2.adb:27:96: info: index check proved
a1f2.adb:28:32: info: loop invariant preservation proved
a1f2.adb:28:32: info: loop invariant initialization proved
a1f2.ads:49:29: info: initialization of "pFailure" proved
a1f2.ads:49:63: info: initialization of "Rl_Return" proved
a1f2.ads:50:10: info: data dependencies proved
a1f2.ads:52:18: info: postcondition proved
As with the example in DO ‑ 333/ED ‑ 216, the use of SPARK contributes to meeting the following objectives. In some cases additional verification activity is needed, and, as noted in the DO ‑ 333/ED ‑ 216 example, "functional tests are always required to establish correctness of the overall system."
Table FM.A-4, Objective FM17: Formal method is correctly defined, justified, and appropriate
Table FM.A-5, Objective FM13: Formal method is correctly defined, justified, and appropriate
Table FM.A-7, Objective FM10: Formal method is correctly defined, justified, and appropriate
Table FM.A-4, Objective FM16: Requirement formalization is correct
Table FM.A-4, Objective 2: Low-level requirements are accurate and consistent
Table FM.A-4, Objective 5: Low-level requirements conform to standards
Table FM.A-5, Objective 1: Source code complies with low-level requirements
Table FM.A-5, Objective FM-10: Formal analysis cases and procedures are correct
Table FM.A-5, Objective FM-11: Formal analysis results are correct and discrepancies explained
Table FM.A-6, Objective 3: Executable object code complies with low-level requirements
Table FM.A-6, Objective 4: Executable object code is tobust with low-level requirements
Table FM.A-7, Objective FM 4: Coverage of low-level requirements is achieved
Table FM.A-7, Objective FM 5-8: Verification of software structure is achieved
Table FM.A-7, Objective FM 9: Verification of property preservation between source and object code
4.5. Parameter Data Items
|
Contributions |
|---|---|
Objectives |
|
Activities |
|
The term "Parameter Data Item" (PDI) in DO ‑ 178C/ED ‑ 12C refers to a set of parameters that influence the behavior of the software without modifying the Executable Object Code. The verification of a parameter data item can be conducted separately from the verification of the Executable Object Code.
PDI development implies the production of three kinds of data:
The "structure and attributes": These define the characteristics of each item, such as its type, range, or set of allowed values. In order to ensure the data item correctness and consistency, a set of consistency rules should also be defined. For example, if one item defines the number of temperature sensors, and other items define the characteristics of each sensor, there is an obvious relationship between these items.
The specification of an instance of a PDI: The defined set of values for each item for an applicable configuration
The PDI file that implements an instance of a PDI directly usable by the processing unit of the target computer (e.g. a binary file)
An efficient way to develop such artifacts is to use Ada and/or SPARK.
The structure and attributes can be defined in one or more package specifications. Each item is defined with its type, defining range and set of allowed values. Predicates can be used to define relationships between parameters. The example below combines a classical approach using strong typing and type ranges, with a dynamic predicate to describe relationships between components of the structure. The intent is to specify the accepted range of temperatures for a given sensor.
type Sensor is
record
Min_Temp : Float range -40.0 .. 60.0;
Max_Temp : Float range -20.0 .. 80.0;
end record
with Dynamic_Predicate => Sensor.Min_Temp < Sensor.Max_Temp;
Each PDI instance needs to satisfy the constraints expressed in the
Dynamic_Predicate aspect. These constraints are based on a
higher-level specification, such as customer-supplied requirements, a
system configuration description, or an installation file. Generating
the PDI file for an instance consists in using GNAT Pro to
compile/link the Ada source code for the PDI, producing a binary file.
Verifying the correctness of a PDI instance (compliance with structure and attributes) can be automated by compiler checks. This means that inconsistencies will be detected at load time. For example,
S1 : Sensor := (Min_Temp => -30.0, Max_Temp => 50.0);
S2 : Sensor := (Min_Temp => -50.0, Max_Temp => 50.0);
S3 : Sensor := (Min_Temp => 40.0, Max_Temp => 30.0);
S1 will be accepted, S2 will not (Min_Temp is out
of range), S3 will not (Min_Temp is above
Max_Temp). (The Dynamic_Predicate check can also be
enabled as a run-time check, via pragma Assertion_Policy(Check)
and the -gnata switch to the GNAT compiler.) If all PDIs are defined
in this manner, completeness of verification is ensured.
The only remaining activity is to check that the PDI instance value complies with the system configuration.
