2. The DO-178C/ED-12C Standards Suite

2.1. Overview

"Every State has complete and exclusive sovereignty over the airspace above its territory." This general principle was codified in Article 1 of the Convention on International Civil Aviation (the "Chicago Convention") in 1944 [ICA44]. To control the airspace, harmonized regulations have been formulated to ensure that the aircraft are airworthy.

A type certificate is issued by a certification authority to signify the airworthiness of an aircraft manufacturing design. The certificate reflects a determination made by the regulating body that the aircraft is manufactured according to an approved design, and that the design complies with airworthiness requirements. To meet those requirements the aircraft and each subassembly must also be approved. Typically, requirements established by a regulating body refer to "Minimum Operating Performance Standards" (MOPS) and a set of recognized "Acceptable Means of Compliance" such as DO ‑ 178/ED ‑ 12 for software, DO ‑ 160/ED ‑ 14 for environmental conditions and test procedures, and DO ‑ 254/ED ‑ 80 for Complex Electronic Hardware.

DO-178C/ED-12C - Software Considerations in Airborne Systems and Equipment Certification [RCT11] — was issued in December 2011, developed jointly by RTCA, Inc., and EUROCAE. It is the primary document by which certification authorities such as the FAA, EASA, and Transport Canada approve all commercial software-based aerospace systems.

The DO ‑ 178C/ED ‑ 12C document suite comprises:

• The core document, which is a revision of the previous release (DO ‑ 178B/ED ‑ 12B). The changes are mostly clarifications, and also address the use of "Parameter Data Items" (e.g., Configuration tables)

• DO ‑ 278A/ED ‑ 109A, which is similar to DO ‑ 178C/ED ‑ 12C and addresses ground-based software used in the domain of CNS/ATM (Communication Navigation Surveillance/Air Traffic Management)

• DO ‑ 248C/ED ‑ 94C (Supporting Information for DO ‑ 178C/ED ‑ 12C and DO ‑ 278A/ED ‑ 109A), which explains the rationale behind the guidance provided in the core documents

• Three technology-specific supplements

  • DO ‑ 331/ED ‑ 218: Model-Based Development and Verification

  • DO ‑ 332/ED ‑ 217: Object Oriented Technology and Related Techniques

  • DO ‑ 333/ED ‑ 216: Formal Methods

Each supplement adapts the core document guidance as appropriate for its respective technology. These supplements are not standalone documents but must be used in conjunction with DO ‑ 178C/ED ‑ 12C or DO ‑ 278A/ED ‑ 109A.

• DO ‑ 330/ED ‑ 215 (Software Tool Qualification Considerations), providing guidance for qualifying software tools. This standard is not specific to DO ‑ 178C/ED ‑ 12C and may be applied to software certification in other application domains.

Details on how to use these standards in practice may be found in [Rie13].

One of the main principles of the DO ‑ 178C/ED ‑ 12C document suite is to be "objective oriented". The guidance in each document consists of a set of objectives that relate to the various software life-cycle processes (planning, development, verification, configuration management, quality assurance, certification liaison). The objectives that must be met for a particular software component depend on the software level (also known as a Design Assurance Level or DAL) of the component. The level in turn is based on the potential effect of an anomaly in that software component on the continued safe operation of the aircraft. Software levels range from E (the lowest) where there is no effect, to A (the highest) where an anomaly can cause the loss of the aircraft. A software component's level is established as part of the system life-cycle processes.

To gain software approval for a system, the applicant has to demonstrate that the objectives relevant to the software level for each component have been met. To achieve this goal, the development team specifies the various software life-cycle activities (based on those recommended by DO ‑ 178C/ED ‑ 12C and/or others), and its associated methods, environment, and organization/management. In case the chosen methods are addressed by one of the technology supplements, additional or alternative objectives must also be satisfied. The technology supplements may replace or add objectives and/or activities.

2.2. Software Tool Qualification Considerations: DO-330/ED-215

A software tool needs to be qualified when a process is automated, eliminated, or reduced, but its outputs are not verified. The systematic verification of the tool outputs is replaced by activities performed on the tool itself: the tool qualification. The qualification effort depends on the assurance level of the airborne software and the possible effect that an error in the tool may have on this software. The resulting combination, the Tool Qualification Level, is a 5 level scale, from TQL-5 (the lowest level, applicable to software tools that cannot insert an error in the resulting software, but might fail to detect an error) to TQL-1 (the highest, applicable to software tools that can insert an error in software at level A).

A tool is only qualified in the context of a specific project, for a specific certification credit, expressed in term of objectives and activities. Achieving qualification for a tool on a specific project does of course greatly increase the likelihood of being able to qualify the tool on another project. However, a different project may have different processes or requirements, or develop software with different environment constraints. As a result, the qualifiability of a tool needs to be systematically assessed on a case-by-case basis.

Although many references are made in the literature about qualified tools, strictly speaking this term should only be used in the context of a specific project. Tools provided by tool vendors, independently of any project, should be identified as qualifiable only. The tool qualification document guidance DO ‑ 330/ED ‑ 215 includes specific objectives that can only be satisfied in the context of a given project environment.

Throughout this document, the applicable tool qualification level is identified together with the relevant objective or activity for which credit may be sought. The qualification activities have been performed with respect to DO ‑ 330/ED ‑ 215 at the applicable Tool Qualification Level. Tool qualification material is available to customers as a supplement to AdaCore's GNAT Pro Assurance product.

2.3. Model-Based Development and Verification Supplement: DO-331/ED-218

Model-based development covers a wide range of techniques for representing the software requirements and/or architecture, most often through a graphical notation. The source code itself is not considered as a model. Well known examples include UML for software architecture, SysSML for system representation, and Simulink© for control algorithms and related requirements. DO ‑ 331/ED ‑ 218 presents the objectives and activities associated with the use of such techniques.

The main added value of the supplement is its guidance on how to use model simulation and obtain certification credit. AdaCore's tools and technologies can be used in conjunction with model-based methods but do not relate directly to the issues addressed in this supplement.

2.4. Object-Oriented Technology and Related Techniques Supplement: DO-332/ED-217

Although DO ‑ 332/ED ‑ 217 is often referred as the "object oriented supplement", the "related techniques" mentioned in the title are equally relevant and are addressed in detail. They may be used in conjunction with Object-Oriented Technology (OOT) but are not necessarily related to OO features. Such related techniques include virtualization, genericity (also known as templates), exceptions, overloading, and dynamic memory management.

Considering the breadth of features covered by DO ‑ 332/ED ‑ 217, at least some of its guidance should be followed regardless of whether the actual application is using object orientation. For example, type conversion is probably present in most code bases regardless of which language is being used.

The DO ‑ 332/ED ‑ 217 supplement is much more code-centric than the others, and only two objectives are added: one related to local type consistency (dynamic dispatching) and another one related to dynamic memory. All other guidance takes the form of additional activities for existing DO ‑ 178C/ED ‑ 12C objectives.

Of particular relevance is the supplement's Vulnerability Analysis annex. Although not binding, it explains in detail what is behind these additional activities. The following features in particular may need to be addressed when Ada is used:

• Inheritance / local type consistency

• Parametric polymorphism (genericity)

• Overloading

• Type conversion

• Exception management

• Dynamic memory

• Component-based development

The Ada language, the precautions taken during the design and coding processes, and the use of AdaCore tools combine to help address or mitigate the vulnerabilities associated with these features.

2.5. Formal Methods Supplement: DO-333/ED-216

DO ‑ 333/ED ‑ 216 provides guidance on the use of formal methods. A formal method is defined as "a formal model combined with a formal analysis". A formal model should be precise, unambiguous and have a mathematically defined syntax and semantics. The formal analysis should be sound; i.e., if it is supposed to determine whether the formal model (for example the software source code in a language such as SPARK) satisfies a given property, then the analysis should never assert that the property holds when in fact it does not.

A formal method may be used to satisfy DO ‑ 178C/ED ‑ 12C verification objectives; formal analysis may therefore replace some reviews, analyses and tests. Almost all verification objectives are potential candidates for formal methods.

In DO ‑ 178C/ED ‑ 12C, the purpose of testing is to verify the Executable Object Code (EOC) based on the requirements. The main innovation of DO-333 / ED-216 is to allow the use of formal methods to replace some categories of tests. In fact, with the exception of software / hardware integration tests showing that the EOC is compatible with the target computer, the other objectives of EOC verification may be satisfied by formal analysis. This is a significant added value. However, employing formal analysis to replace tests is a new concept in the avionics domain, with somewhat limited experience in practice thus far (see [MLD+13] for further information). As noted in [Moy17], a significant issue is how to demonstrate that the compiler generates code that properly preserves the properties that have been formally demonstrated for the source code. Running the integration tests both with and without the contracts being executed, and showing that the results are the same in both cases, is one way to gain the necessary confidence that properties have been preserved in the EOC.

Details from tool providers on the underlying models or mathematical theories implemented in the tool are necessary to assess the maturity of the method. Then substantiation and justification need to be documented, typically in the Plan for Software Aspects of Certification (PSAC), and provided to certification authorities at an early stage for review.

AdaCore provides the SPARK technology as a formal method that can eliminate or reduce the testing based on low-level requirements. Using SPARK will also get full or partial credit for other objectives, such as requirements and code accuracy and consistency, verifiability, etc. Its usage is consistent with the example provided in Appendix B of DO ‑ 333/ED ‑ 216, "FM.B.1.5.1 Unit Proof", and a SPARK version of this example is shown in SPARK Development Cycle Example. Certification credit for using formal proofs is summarized in Fig. 2:

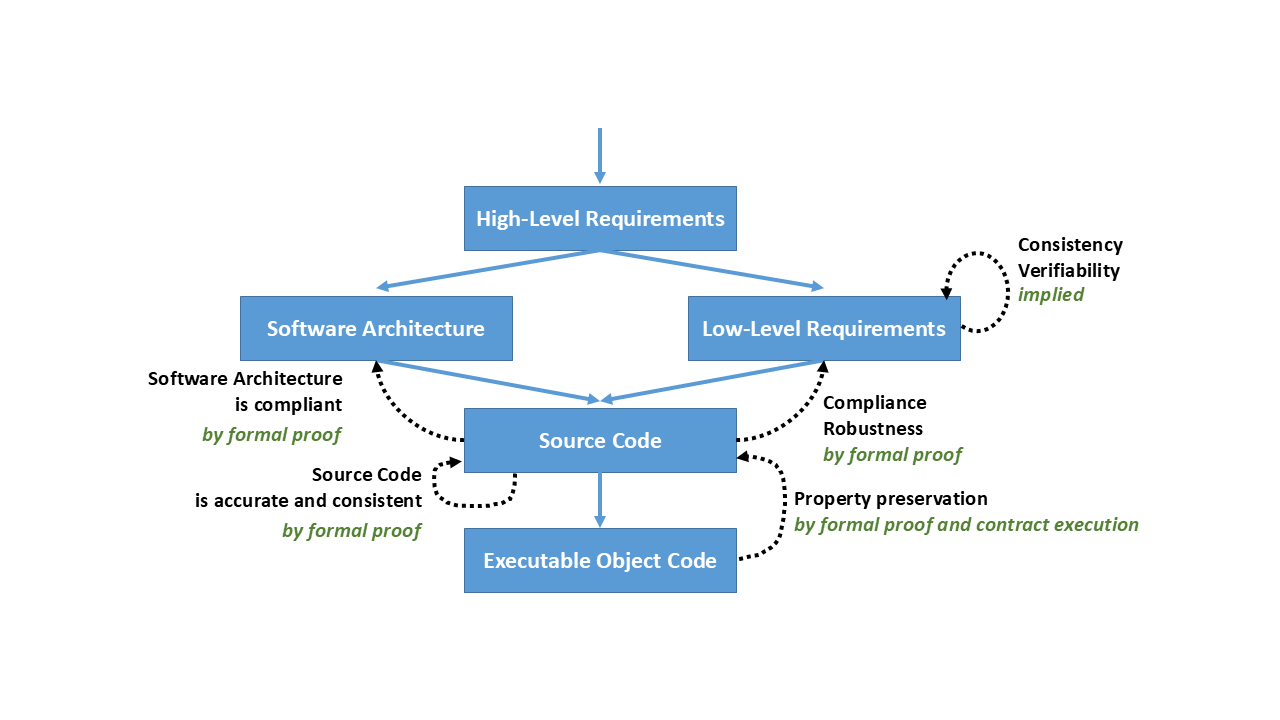

Fig. 2 SPARK contributions to verification objectives
